TSM-104-02-F-DV

Headers, Male Pins Overview

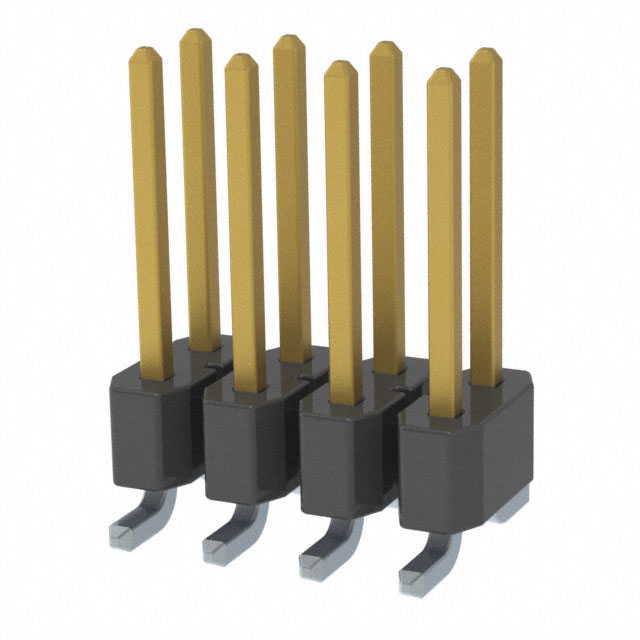

The Samtec TSM-104-02-F-DV is a flexible stacking header featuring a .100 inch (2.54 mm) pitch with two rows and eight positions. Designed for surface mount installation, it utilizes phosphor bronze contacts with gold plating on the mating interface and tin termination. The housing is constructed from black liquid crystal polymer (LCP), rated UL 94 V-0. It supports a temperature range of -55°C to +125°C and offers a current rating between 4.1 A and 5.4 A.

Headers, Male Pins Feature Summary

• Flexible stacking design accommodates varying board heights without requiring precise alignment.
• Push-pull fastening mechanism ensures secure connection during operation.
• Gold-plated contact surfaces provide reliable electrical conductivity and corrosion resistance.

Headers, Male Pins Applications

• Board-to-board interconnections in compact electronic assemblies
• Stacked circuit board architectures requiring variable height tolerance
• High-density signal routing in industrial control modules

Headers, Male Pins Procurement Notes

Verify the specific suffix against official Samtec documentation to confirm plating thickness and packaging type. Ensure compatibility with existing PCB footprint designs before procurement. Cross-reference RoHS compliance status with current regulatory requirements for the target market.

Headers, Male Pins Selection Notes

Select this component when flexible stacking capabilities are required for multi-layer board integration. Consider the operating temperature range and current ratings relative to the application's thermal profile. Verify that the surface mount termination style aligns with the manufacturing process capabilities.

Headers, Male Pins Part Context

This part belongs to the TSM series of flexible terminal strips manufactured by Samtec. These components are engineered for high-reliability connections where standard rigid headers cannot accommodate mechanical tolerances or height variations between connected boards.

Headers, Male Pins Replacement Considerations

TSM-104-02-S-DV-A-TR: Offers similar specifications with gold plating and reel packaging. TSM-104-02-TM-DV: Provides tin-plated contacts with tube packaging. Verify pin count and pitch compatibility before substitution.
