TSM-104-02-T-SV-P

Headers, Male Pins Overview

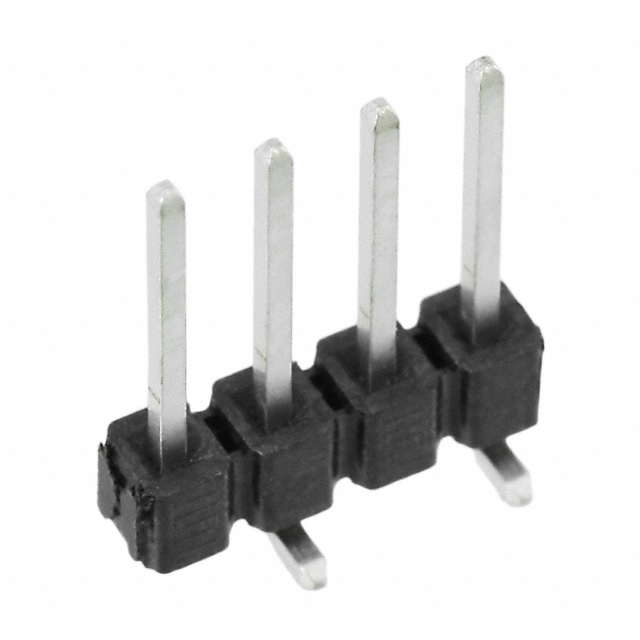

The TSM-104-02-T-SV-P is a surface mount header manufactured by Samtec Inc. It features a 2.54 mm (0.100 inch) pitch with 4 positions in a single row. The connector utilizes phosphor bronze contacts with tin plating and liquid crystal polymer insulation rated UL94 V-0. Designed for board-to-board or cable applications, it supports a temperature range of -55°C to 105°C and includes pick-and-place capabilities for automated assembly.

Headers, Male Pins Feature Summary

• Surface mount design with mixed technology pin options for flexible processing
• Extended Life Product qualification ensuring high mating cycle durability
• Standard post heights compatible with various socket solutions

Headers, Male Pins Applications

• Board-to-board interconnections
• Cable-to-board connections
• Automotive A-Series product integration

Headers, Male Pins Procurement Notes

Verify the specific contact plating configuration against official datasheets, as variants exist with gold or tin finishes. Confirm that the 'T' suffix corresponds to tin-plated contacts rather than gold. Ensure the package type matches the required reel or tube specifications for your manufacturing line. Cross-reference the MSL rating and RoHS status with current environmental compliance requirements before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a surface mount header with tin-plated contacts is required for standard signal applications. The single-row configuration suits low-density interconnects where space is constrained. Verify that the operating temperature range meets the system's thermal profile. Consider the extended life testing if the application demands higher reliability than standard commercial grade connectors provide.

Headers, Male Pins Part Context

This part belongs to the TSM series of .100" surface mount terminal strips. The series offers single, double, and triple row options with straight or right-angle pins. It is designed specifically for surface mount applications, providing flexibility in processing and orientation while maintaining compatibility with classic .100" pitch systems.

Headers, Male Pins Replacement Considerations

TSM-104-02-S-SV-P-TR serves as a direct substitute if gold plating is acceptable instead of tin. TSM-104-02-L-SV-P-TR is an alternative with lower gold thickness. For tin-plated equivalents, verify identical mechanical dimensions and contact material properties to ensure functional interchangeability without redesigning the footprint.
