TSM-125-02-G-DV

Headers, Male Pins Overview

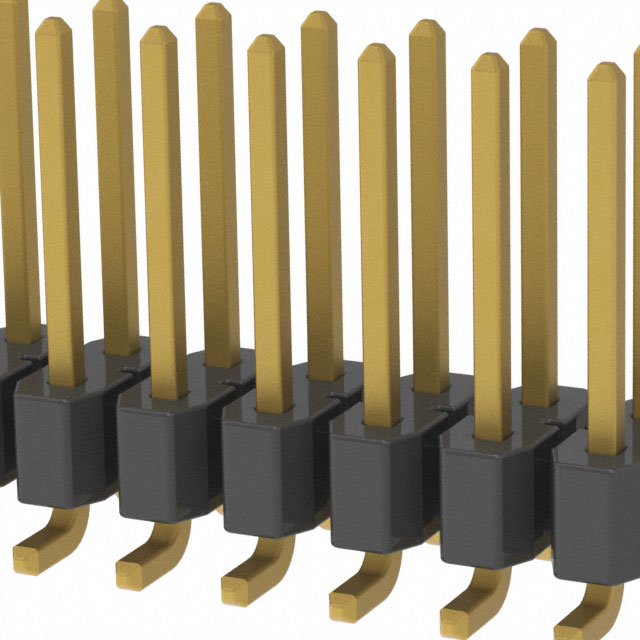

The Samtec TSM-125-02-G-DV is a .100" (2.54 mm) surface mount terminal strip featuring 50 positions arranged in a dual row configuration. It utilizes phosphor bronze contacts with gold plating and a liquid crystal polymer (LCP) insulator rated UL 94 V-0. The connector supports a current rating of 4.1 A to 5.4 A and operates within a temperature range of -55°C to +125°C. Designed for high-reliability applications, it meets MIL-DTL-55302 standards and offers up to 8 Gbps performance.

Headers, Male Pins Feature Summary

• Extended Life Product certified with 10-year Mixed Flowing Gas corrosion resistance
• Surface mount design with mixed technology pin options for flexible processing
• High mating cycle durability ranging from 250 to 2,500 cycles
• Standard post heights compatible with various Samtec socket solutions

Headers, Male Pins Applications

• High-speed data transmission systems requiring up to 8 Gbps performance
• Automotive electronics utilizing Automotive A-Series qualification standards
• Severe environment testing applications meeting MIL-DTL-55302 requirements
• Board-to-board or cable interconnects in industrial equipment

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix to confirm contact plating thickness and termination style. Ensure the selected variant matches the required surface mount footprint and pin orientation. Confirm RoHS compliance status and moisture sensitivity level prior to assembly. Cross-reference the official datasheet for exact dimensional tolerances and recommended reflow soldering profiles to guarantee reliable joint formation.

Headers, Male Pins Selection Notes

Select this component when a robust surface mount header with high signal integrity is required. The dual-row layout provides dense connectivity while maintaining standard .100 inch spacing. Consider the gold-plated contacts for superior conductivity and corrosion resistance in demanding environments. Evaluate the thermal operating range to ensure compatibility with the target application's environmental conditions.

Headers, Male Pins Part Context

This part belongs to the TSM series of .100 inch surface mount terminal strips manufactured by Samtec. The series offers single, double, and triple row configurations with vertical or horizontal mounting options. It is designed as an Extended Life Product suitable for harsh conditions, providing a reliable interconnect solution for modern electronic assemblies requiring high durability.

Headers, Male Pins Replacement Considerations

TSM-125-02-G-DV-A

Headers, Male Pins FAQ

What is the maximum data rate supported by this connector?

The TSM-125-02-G-DV supports performance up to 8 Gbps.

Does this component meet military standards?

Yes, it meets or exceeds MIL-DTL-55302 testing standards.
