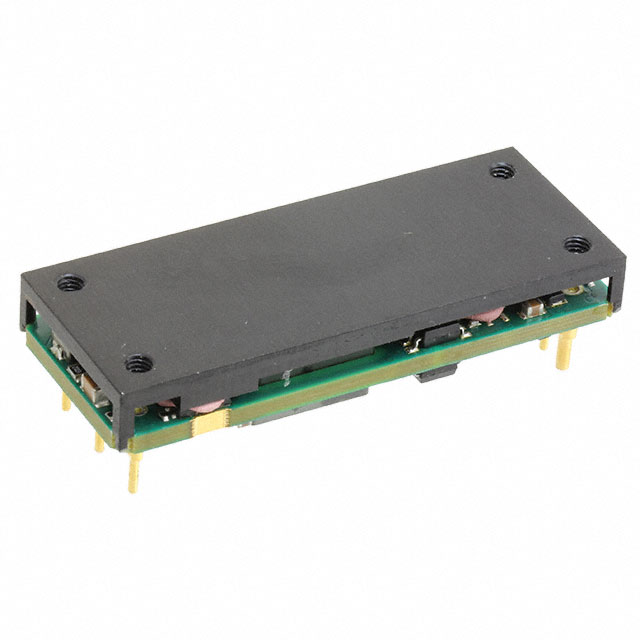

UEE-5/30-D48PM-C

UEE-5/30-D48PM-C is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Murata Power Solutions Inc.. Its product description is DC DC CONVERTER 5V 150W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for UEE-5/30-D48PM-C

• Description：DC DC CONVERTER 5V 150W
• Series：UEE (150W)
• Mfr：Murata Power Solutions Inc.
• Package：Tape & Reel (TR)
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：36V
• Voltage - Input (Max)：75V
• Voltage - Output 1：5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：30A
• Power (Watts)：150 W
• Voltage - Isolation：2.25 kV
• Applications：ITE (Commercial)
• Features：Remote On/Off, OCP, OTP, OVP, SCP, UVLO
• Operating Temperature：-40°C ~ 85°C
• Efficiency：92%
• Mounting Type：Surface Mount
• Package / Case：8-SMD Module, 1/8 Brick
• Size / Dimension：2.30" L x 0.90" W x 0.42" H (58.4mm x 22.9mm x 10.7mm)
• Supplier Device Package：-
• Control Features：Enable, Active High
• Approval Agency：-
• Standard Number：-

DC DC Converters datasheet and documents for UEE-5/30-D48PM-C
