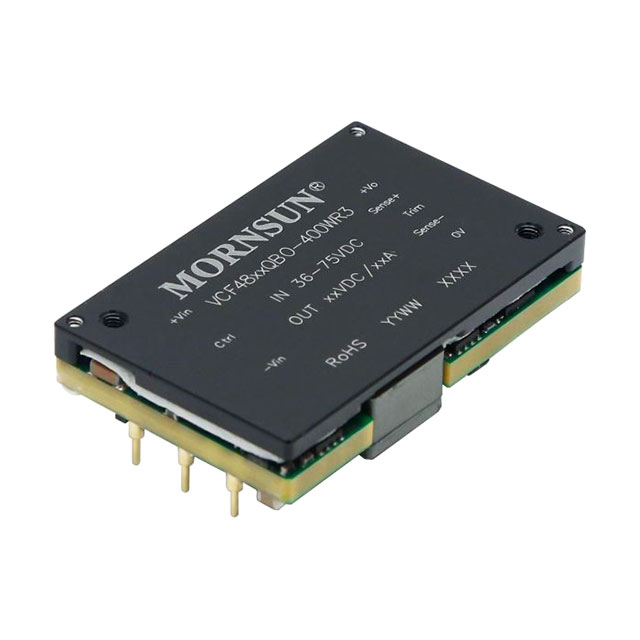

VCF4812QBO-400WR3

VCF4812QBO-400WR3 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Mornsun America, LLC. Its product description is DC DC CONVERTER, 400W, 12V. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for VCF4812QBO-400WR3

• Description：DC DC CONVERTER, 400W, 12V
• Series：VCF48_QBO-400WR3 (400W)
• Mfr：Mornsun America, LLC
• Package：Tray
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：36V
• Voltage - Input (Max)：75V
• Voltage - Output 1：12V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：33A
• Power (Watts)：396 W
• Voltage - Isolation：2.25 kV
• Applications：ITE (Commercial)
• Features：Adjustable Output, Remote Sense
• Operating Temperature：-40°C ~ 85°C (With Derating)
• Efficiency：95%
• Mounting Type：Through Hole
• Package / Case：Quarter Brick
• Size / Dimension：2.28" L x 1.45" W x 0.51" H (57.9mm x 36.8mm x 12.9mm)
• Supplier Device Package：Quarter Brick
• Control Features：-
• Approval Agency：-
• Standard Number：62368-1

DC DC Converters datasheet and documents for VCF4812QBO-400WR3
