VLS201612HBX-R24M-1

Fixed Inductors Overview

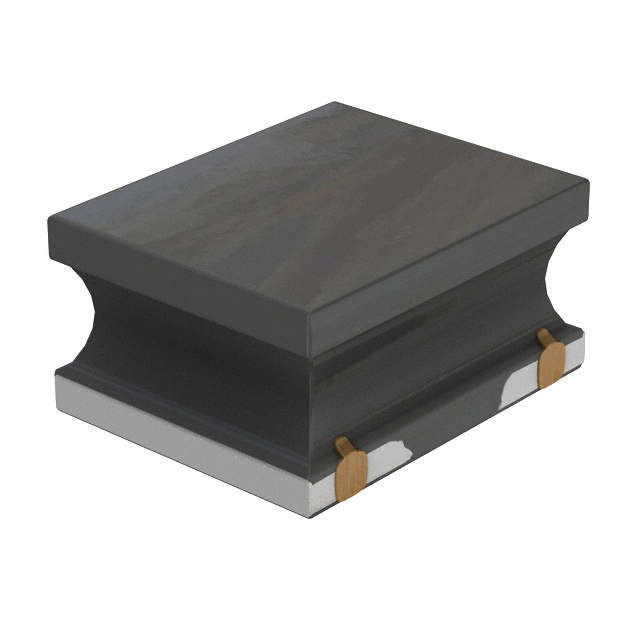

The VLS201612HBX-R24M-1 is a shielded drum core wirewound power inductor from TDK Corporation's VLS-HBX series. It features an inductance of 240 nH and a maximum DC resistance of 29 mΩ. The component supports a current rating of 4.25 A with a saturation current of 6.5 A. Designed for surface mount technology, it utilizes an 0806 (2016 Metric) package with a maximum height of 1.20 mm. It operates within a temperature range of -40°C to 105°C and complies with AEC-Q200 standards.

Fixed Inductors Feature Summary

• Shielded drum core construction minimizes electromagnetic interference
• High current capability suitable for power circuit applications
• Compliant with automotive reliability standards

Fixed Inductors Applications

• Power supply output filtering
• DC-DC converter input/output stages
• Automotive electronic control units

Fixed Inductors Procurement Notes

Verify the specific ordering suffix to confirm exact electrical tolerances and packaging configuration. Ensure the procurement source provides official manufacturer documentation or authorized distributor certification to guarantee component authenticity and traceability. Cross-reference the part number against the latest datasheet to confirm compatibility with current design requirements.

Fixed Inductors Selection Notes

Select this component for designs requiring compact power inductors with high current handling in limited space. The 240 nH value suits high-frequency switching applications. Evaluate thermal performance under load conditions to ensure operation remains within the specified -40°C to 105°C range. Confirm footprint compatibility with existing PCB layouts before integration.

Fixed Inductors Part Context

This part belongs to the VLS-HBX series of fixed inductors designed for commercial and automotive grade power circuits. The series offers various inductance values within the 0806 package size. It serves as a passive energy storage element in switching power supplies, providing noise suppression and current smoothing capabilities.

Fixed Inductors Replacement Considerations

Direct substitutes include other 240 nH shielded inductors in the 0806 package with comparable current ratings. Verify pinout and mechanical dimensions match the original footprint. Check if alternative manufacturers offer components meeting the same AEC-Q200 qualification and thermal specifications.
