VS-ETF150Y65N

Overview

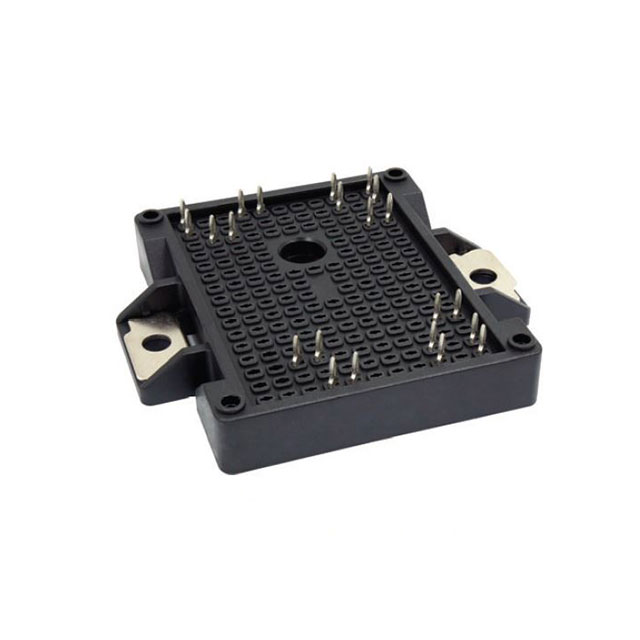

The VS-ETF150Y65N is a half-bridge inverter IGBT module manufactured by Vishay General Semiconductor - Diodes Division. It features an NPT (Non-Punch-Through) technology design and is housed in the EMIPAK-2B package. The device is rated for a maximum collector-emitter voltage of 650 V and supports a continuous collector current of 201 A. With a power dissipation capacity of 600 W, it is engineered for high-power switching applications requiring robust thermal performance and reliable operation under demanding electrical conditions.

Feature Summary

• Utilizes NPT technology for enhanced ruggedness and short-circuit withstand capability
• Configured as a half-bridge inverter topology within a compact EMIPAK-2B module
• Designed for high-efficiency power conversion with optimized switching characteristics

Applications

• Industrial motor drives and variable frequency drives
• Uninterruptible power supplies (UPS) systems
• High-frequency induction heating equipment

Procurement Notes

Verify the specific datasheet revision and technical documentation directly from Vishay or authorized distributors to ensure compliance with current specifications. Confirm that the EMIPAK-2B mounting interface matches your thermal management solution. Ensure all handling procedures adhere to electrostatic discharge (ESD) protection standards during installation and integration into power electronics assemblies.

Selection Notes

Select this module for applications requiring a 650 V rating and up to 201 A continuous current in a half-bridge configuration. Consider the 600 W power dissipation limit when designing the heatsink and thermal interface. Evaluate the switching speed and gate charge requirements against your driver capabilities to optimize efficiency and minimize electromagnetic interference in the target power circuit design.

Part Context

This component belongs to Vishay's portfolio of discrete and module semiconductors, specifically within their IGBT module lineup. The VS-ETF series utilizes advanced packaging technologies like EMIPAK to provide high current density and improved thermal conductivity compared to traditional modules. These devices are part of the broader family of power electronic solutions designed for industrial and automotive applications.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. When seeking alternatives, compare key parameters such as voltage rating, current capacity, package dimensions, and thermal resistance. Consult official manufacturer cross-reference guides for verified replacements to ensure functional compatibility.
