Product Detailed Parameters
- Description：MODULES IGBT - IAP IGBT
- Series：FRED Pt®
- Mfr：Vishay General Semiconductor - Diodes Division
- Package：Box
- IGBT Type：Trench
- Configuration：Half Bridge Inverter
- Vce(on) (Max) @ Vge, Ic：1.32V @ 15V, 150A
- Input：Standard
- NTC Thermistor：No
- Operating Temperature：-40°C ~ 175°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：INT-A-PAK IGBT
- Voltage - Collector Emitter Breakdown (Max)：650 V
- Current - Collector (Ic) (Max)：372 A
- Power - Max：789 W
- Current - Collector Cutoff (Max)：150 µA
- Input Capacitance (Cies) @ Vce：-
Download product information
Overview

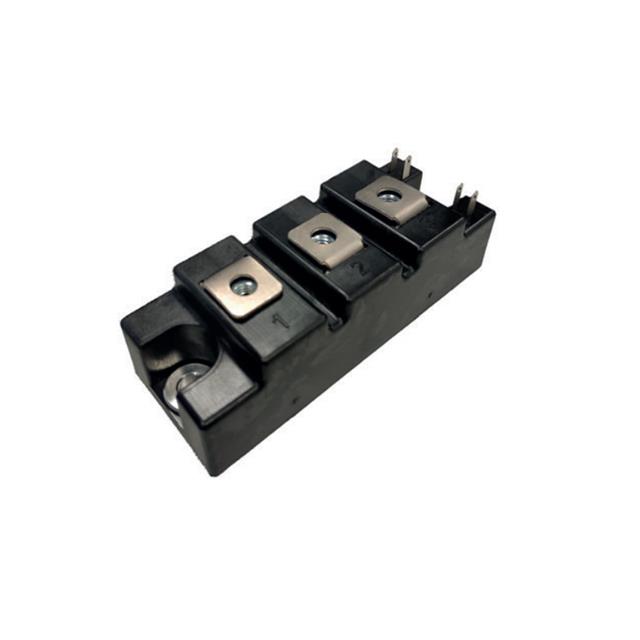

The VS-GT150TS065S is a half bridge IGBT module utilizing Trench IGBT technology and Gen4 FRED Pt® anti-parallel diodes. It features an INT-A-PAK package with Al2O3 DBC for low thermal resistance. Key electrical parameters include a collector-emitter voltage (VCES) of 650 V, continuous collector current (IC DC) of 280 A at TC = 80 °C, and terminal level VCE(on) of 1.07 V at 150 A and 25 °C. The device supports junction temperatures up to 175 °C and includes UL approval file E78996.
Feature Summary
- Optimized for high current inverter stages such as AC TIG welding machines
- Features ultra soft reverse recovery characteristics via Gen4 FRED Pt® technology
- Designed for industrial level applications with direct heatsink mounting capability
Applications
- High current inverter stages
- AC TIG welding machines
- Industrial power electronics
Procurement Notes
Verify the specific revision date on the datasheet document number 97061 before finalizing designs. Confirm that the INT-A-PAK mechanical dimensions match the target PCB or heatsink layout. Ensure gate drive voltages remain within the specified ±20 V RMS limit to prevent insulation breakdown.
Selection Notes
Select this component when low conduction losses are critical for high current applications. The standard speed variant is suitable for frequencies up to 1 kHz. Evaluate thermal impedance curves against the expected duty cycle to ensure junction temperature remains below 175 °C under peak load conditions.
Part Context
This part belongs to Vishay's INT-A-PAK series of half bridge modules. It is designed to replace older industrial standard packages while offering improved thermal performance through its Al2O3 DBC substrate. The module integrates a Trench IGBT switch with a complementary fast recovery diode.
Replacement Considerations
Check mechanical compatibility with existing 34 mm industrial standard footprints if retrofitting. Verify that the new gate charge requirements align with the existing driver circuit capabilities.
