VXA4-1B5-40M0000000

Crystals Overview

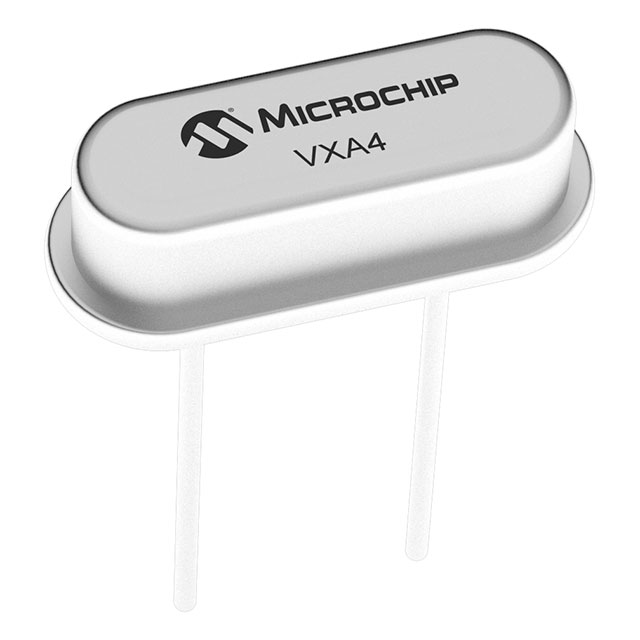

The VXA4-1B5-40M0000000 is a 40 MHz crystal oscillator manufactured by Microchip Technology. It features a frequency tolerance of ±10 ppm and a stability of ±50 ppm over the operating temperature range. The component utilizes HC-49/U packaging, suitable for computer and peripheral applications.

Crystals Feature Summary

• HC-49/U package design
• CMOS output signal

Crystals Applications

• Computer systems
• Peripheral devices

Crystals Procurement Notes

Verify current availability through official Microchip channels or authorized distributors. Confirm that the HC-49/U form factor meets mechanical constraints. Ensure CMOS interface compatibility with target circuitry before finalizing procurement.

Crystals Selection Notes

Select this component when a standard 40 MHz reference with ±10 ppm initial accuracy is required. The HC-49/U package offers established mounting solutions. Verify that the ±50 ppm total stability across the temperature range satisfies system timing requirements.

Crystals Part Context

This part belongs to the VXA4 series of crystals from Microchip Technology. The series targets general-purpose digital logic and computing environments requiring reliable clock sources.

Crystals Replacement Considerations

Consult Microchip documentation for direct equivalents. Verify pinout and electrical specifications match before substitution.
