WL1608FS15NKTFM01

$0.11

Description：FIXED IND 15NH 2.2A 25 MOHM SMD
Series：WL-FS
Mfr：Shenzhen Sunlord Electronics Co., Ltd.
Package：Tape & Reel (TR)

SKU:ffff31541e60 Category: Fixed Inductors Brand: Shenzhen Sunlord Electronics Co., Ltd.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

WL1608FS15NKTFM01 is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Shenzhen Sunlord Electronics Co., Ltd.. Its product description is FIXED IND 15NH 2.2A 25 MOHM SMD. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for WL1608FS15NKTFM01

Description：FIXED IND 15NH 2.2A 25 MOHM SMD
Series：WL-FS
Mfr：Shenzhen Sunlord Electronics Co., Ltd.
Package：Tape & Reel (TR)
Type：Drum Core, Wirewound
Material - Core：Ferrite
Inductance：15 nH
Tolerance：±10%
Current Rating (Amps)：2.2 A
Current - Saturation (Isat)：-
Shielding：Unshielded
DC Resistance (DCR)：25mOhm Max
Q @ Freq：-
Frequency - Self Resonant：2GHz
Ratings：-
Operating Temperature：-40°C ~ 85°C
Inductance Frequency - Test：10 MHz
Mounting Type：Surface Mount
Package / Case：0603 (1608 Metric)
Supplier Device Package：603
Size / Dimension：0.067" L x 0.037" W (1.70mm x 0.95mm)
Height - Seated (Max)：0.039" (1.00mm)
Features：-

Fixed Inductors datasheet and documents for WL1608FS15NKTFM01

WL1608FS15NKTFM01

Fixed Inductors Overview

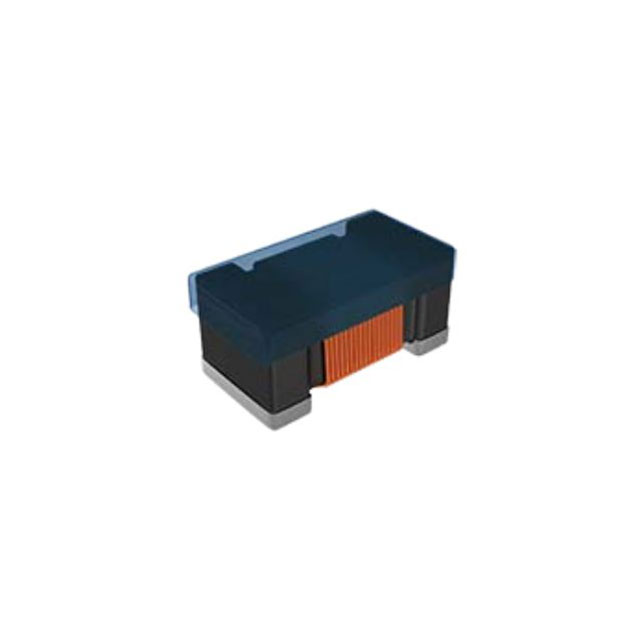

The WL1608FS15NKTFM01 is a fixed surface-mount inductor manufactured by Shenzhen Sunlord Electronics Co., Ltd. It features an unshielded drum core wirewound construction housed in a standard 0603 (1608 Metric) package. The component provides a nominal inductance of 15 nH and supports a maximum current rating of 2.2 A. Its direct current resistance is specified at a maximum of 25 mOhm, ensuring low power loss in high-frequency signal paths.

Fixed Inductors Feature Summary

Unshielded drum core wirewound design for stable inductance characteristics
Compact 0603 surface-mount footprint suitable for space-constrained PCB layouts
Low DC resistance configuration to minimize energy dissipation

Fixed Inductors Applications

High-speed data handling circuits
RF signal filtering applications
General-purpose electronic circuitry requiring small form factor inductors

Fixed Inductors Procurement Notes

Verify the manufacturer part number against official Sunlord documentation to ensure authenticity. Confirm that the received components match the specified 15 nH inductance and 2.2 A current rating. Check for physical integrity of the 0603 package and absence of terminal oxidation before integration into production lines.

Fixed Inductors Selection Notes

Select this component when a compact, unshielded inductor with low inductance value is required. The 0603 package size offers a balance between component density and thermal performance. Ensure the application environment does not require magnetic shielding, as the drum core design is inherently unshielded.

Fixed Inductors Part Context

This inductor belongs to the Sunlord series of chip inductors and beads. Sunlord Electronics specializes in passive magnetic components, including chip inductors, varistors, and common mode chokes. The company serves various sectors such as communications, consumer electronics, and automotive systems with its wide range of electronic parts.
