X2U026000B81HBZ-DHPZ

Crystals Overview

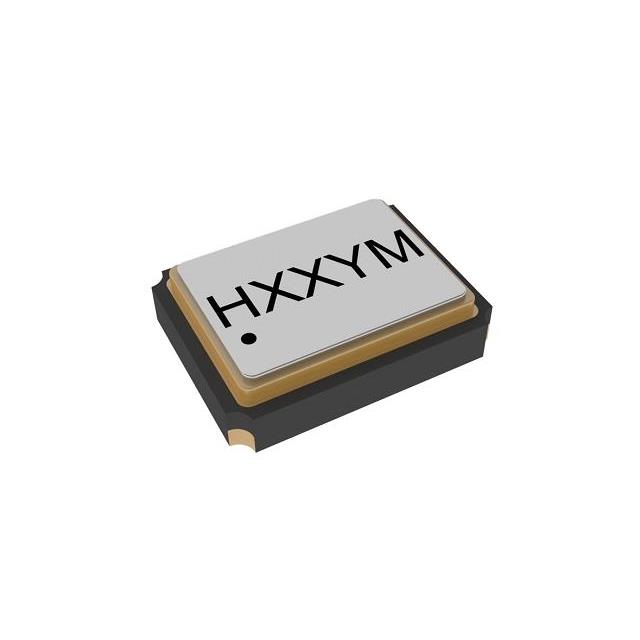

The X2U026000B81HBZ-DHPZ is a fundamental mode MHz crystal manufactured by Harmony Electronics Corp. It operates at a nominal frequency of 26 MHz with a frequency tolerance of ±10ppm. The component features an 8pF load capacitance and utilizes a 4-SMD, No Lead package configuration.

Crystals Feature Summary

• Fundamental operating mode for stable resonance
• Precision quartz frequency control component
• Surface-mount design without leads

Crystals Applications

• Consumer devices
• Data communication systems
• Networking applications

Crystals Procurement Notes

Verify the manufacturer part number against official Harmony Electronics Corp documentation to ensure authenticity. Confirm that the specific suffix matches the required electrical specifications and package type before procurement. Cross-reference with authorized distributor lists to avoid counterfeit components.

Crystals Selection Notes

Select this component when a 26 MHz fundamental crystal with ±10ppm tolerance is required. Ensure the circuit design supports an 8pF load capacitance. Verify compatibility with the 4-SMD no-lead footprint during PCB layout planning.

Crystals Part Context

This crystal belongs to the Harmony Electronics Corp quartz frequency control family. The company specializes in precision timing devices established since 1976. This specific model represents their standard surface-mount crystal offerings for general electronic applications.

Crystals Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult official Harmony Electronics Corp resources for direct replacements.
