XC6VLX75T-3FF484C

Field Programmable Gate Array Overview

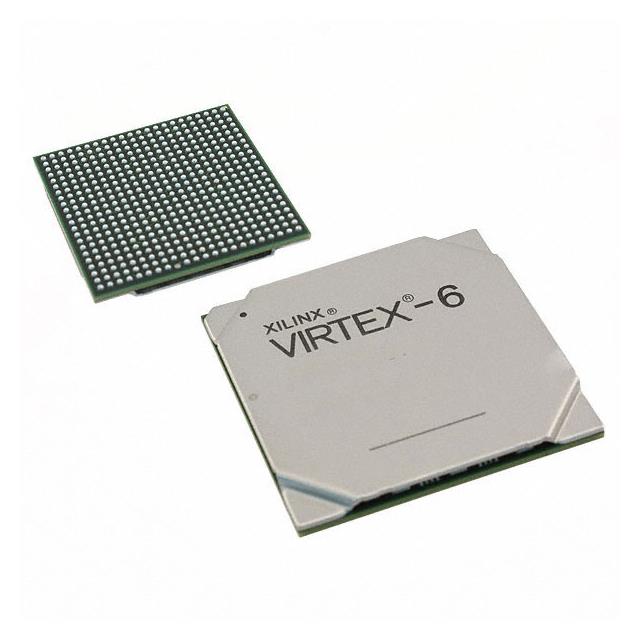

The XC6VLX75T-3FF484C is a Field Programmable Gate Array from the Virtex-6 LX family, manufactured by AMD. It features 74,496 logic elements and 5,831 Logic Array Blocks within a 484-pin FCBGA package. The device supports a maximum operating frequency of 1286 MHz with a CLB maximum combinatorial delay of 4.29 ns. It includes 240 I/Os, operates at a core voltage of 1.2 V (range 1.14 V to 1.26 V), and functions within a commercial temperature range of 0°C to 85°C. The component is lead-free and RoHS compliant.

Field Programmable Gate Array Feature Summary

• High-performance architecture supporting data rates up to 6.6 Gb/s for high-speed serial communications.
• Integrated hard processor system capabilities with embedded block RAM for efficient data storage and processing.
• Supports advanced packaging technologies including Flip-Chip Ball Grid Array for enhanced signal integrity.

Field Programmable Gate Array Applications

• High-speed telecommunications infrastructure equipment
• Industrial automation and control systems
• Medical imaging and diagnostic devices

Field Programmable Gate Array Procurement Notes

Verify the specific suffix '3FF484C' against official AMD documentation to confirm pinout and electrical characteristics match design requirements. Ensure compatibility with existing PCB footprints and thermal management solutions. Confirm RoHS compliance status through current manufacturer declarations before integration into regulated products.

Field Programmable Gate Array Selection Notes

Select this model when high logic density and fast clock speeds are required for complex digital signal processing tasks. Compare against Spartan-6 or Artix-7 families if lower cost or power consumption is prioritized over performance. Verify that the 484-pin package fits the available board space and assembly constraints.

Field Programmable Gate Array Part Context

This component belongs to the Virtex-6 LX series, designed for high-end applications requiring significant computational power. It sits above the Spartan-6 in performance hierarchy but offers different feature sets compared to the Virtex-5 and Virtex-7 generations. The LX variant focuses on logic density and DSP efficiency.

Field Programmable Gate Array Replacement Considerations

Direct pin-to-pin replacements may not exist due to architectural differences. Consider XC6VLX75T-2FF484C for higher speed grades or XC6VLX240T for increased resources. Validate timing closure and resource utilization when migrating between different FPGA families.
