XCKU19P-2FFVB2104E

Field Programmable Gate Array Overview

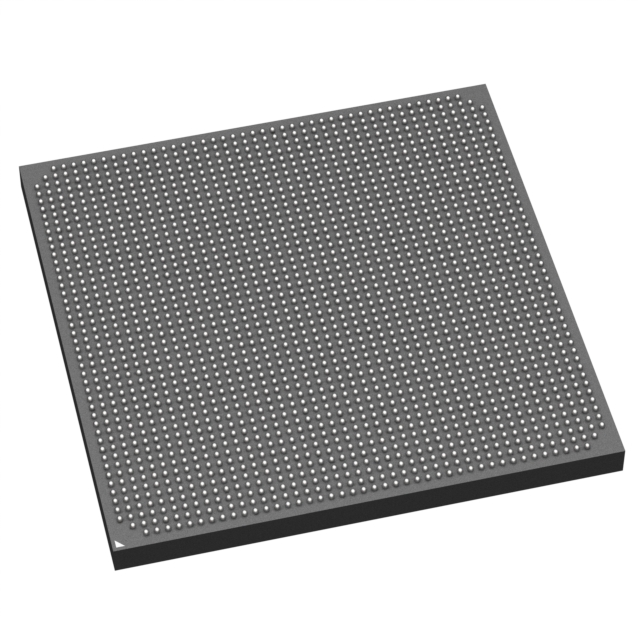

The XCKU19P-2FFVB2104E is a Kintex UltraScale+ Field Programmable Gate Array manufactured by AMD. It features 67,200 Adaptive Logic Modules and 59.1 Mbit of embedded memory within an FBGA-2104 package. The device supports a maximum data rate of 16.3 Gb/s via 64 transceivers and provides 766 I/Os. Operating at a core voltage of 850 mV, it functions within a temperature range of -40°C to +100°C.

Field Programmable Gate Array Feature Summary

• Integrates 64 high-speed serial transceivers for multi-gigabit connectivity
• Provides extensive logic capacity through 67,200 adaptive logic modules
• Includes substantial on-chip memory resources totaling 59.1 Mbit

Field Programmable Gate Array Applications

• High-performance networking infrastructure equipment
• Industrial automation control systems
• Test and measurement instrumentation

Field Programmable Gate Array Procurement Notes

Verify the specific suffix 'E' against official AMD documentation to confirm the exact commercial grade or environmental rating. Ensure compatibility with required PCB fabrication standards for the 2104-pin FBGA package. Confirm RoHS compliance status directly from the manufacturer's datasheet before procurement.

Field Programmable Gate Array Selection Notes

Select this component when designs require moderate logic density combined with significant serial interface bandwidth. The Kintex UltraScale+ architecture offers a balance between performance and cost. Evaluate power consumption requirements against the 850 mV core voltage specification during system thermal design.

Field Programmable Gate Array Part Context

This part belongs to the Kintex UltraScale+ family, positioned below the Virtex series in terms of resource density. It targets mid-to-high-end applications requiring robust programmable logic and reliable serial communication capabilities without the highest tier of processing resources found in larger devices.

Field Programmable Gate Array Replacement Considerations

Consult AMD's official cross-reference tools for verified substitutes. Consider the XCKU095-2FFVB2104I for similar packaging but lower logic density. Verify pinout and electrical parameter compatibility before replacing any existing components.
