YPGS001AA

$1.25

Description：GPS PCB CHIP ANTENNA, 7.0 X 5.8
Series：-
Mfr：Quectel
Package：Bulk

SKU:06611289d05e Category: RF Antennas Brand: Quectel

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

YPGS001AA is listed in the Antennas RF range at ChipApex. The manufacturer field lists Quectel. Its product description is GPS PCB CHIP ANTENNA, 7.0 X 5.8. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for YPGS001AA

Description：GPS PCB CHIP ANTENNA, 7.0 X 5.8
Series：-
Mfr：Quectel
Package：Bulk
RF Family/Standard：Navigation
Frequency Group：UHF (1GHz ~ 2GHz)
Frequency (Center/Band)：1.58GHz
Frequency Range：1.56GHz ~ 1.61GHz
Antenna Type：Chip
Number of Bands：1
VSWR：-
Return Loss：-
Gain：-
Features：-
Termination：-
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Surface Mount
Height (Max)：0.031" (0.80mm)
Applications：GNSS
Power - Max：-

Antennas RF datasheet and documents for YPGS001AA

YPGS001AA

Antennas RF Overview

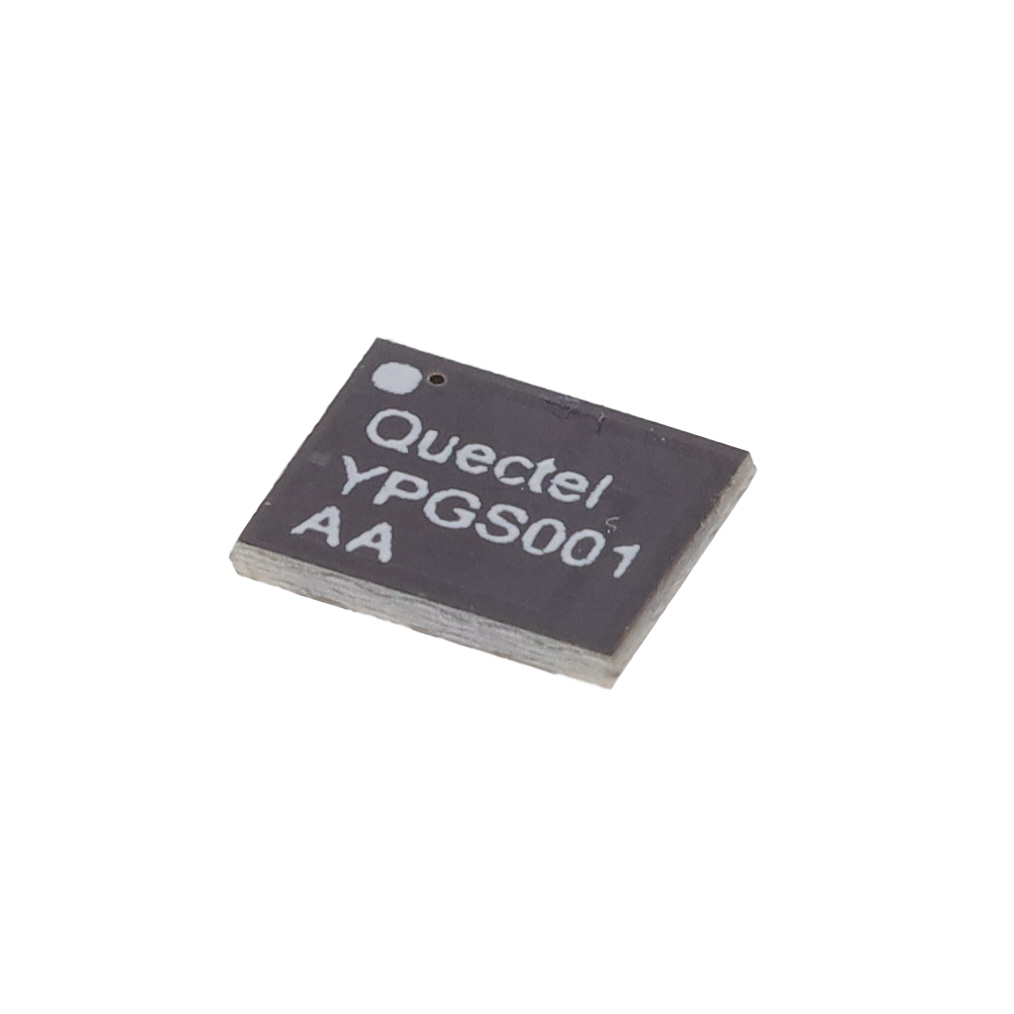

The Quectel YPGS001AA is a passive GNSS L1 embedded antenna designed for surface-mount technology (SMT) applications. It features a compact ceramic chip form factor with dimensions of 7.0mm x 5.8mm x 0.8mm. The component operates within the frequency range of 1.56GHz to 1.61GHz, centered at 1.58GHz, supporting single-band GNSS L1 reception. It is RoHS and REACH compliant.

Antennas RF Feature Summary

Passive GNSS L1 embedded design optimized for SMT mounting
Compact ceramic chip construction with precise dimensional profile
RoHS and REACH compliance for regulatory adherence

Antennas RF Applications

GNSS navigation system integration
Embedded device positioning modules
IoT hardware development

Antennas RF Procurement Notes

Verify that the specific order matches the passive GNSS L1 specification and SMT package type. Confirm RoHS and REACH compliance documentation is included with the shipment. Ensure handling procedures protect the delicate ceramic chip structure during installation.

Antennas RF Selection Notes

Select this component when a low-profile, passive GNSS solution is required for space-constrained designs. It is suitable for applications needing L1 band support without active amplification. Consider the SMT mounting requirement for automated assembly processes.

Antennas RF Part Context

This part belongs to the category of RF antennas manufactured by Quectel. It serves as a passive receiver element for global navigation satellite systems, specifically targeting the L1 frequency band for standard positioning services in electronic devices.
