1.5SMC550A

1.5SMC550A is listed in the Tvs Diodes range at ChipApex. The manufacturer field lists Bourns Inc.. Its product description is TVS DIODE 495VWM 760VC DO214AB. Review the specifications below when checking this part for your BOM.

Tvs Diodes specifications for 1.5SMC550A

• Description：TVS DIODE 495VWM 760VC DO214AB
• Series：-
• Mfr：Bourns Inc.
• Package：Tape & Reel (TR),Cut Tape (CT)
• Type：Zener
• Bidirectional Channels：-
• Voltage - Reverse Standoff (Typ)：495V
• Voltage - Breakdown (Min)：522.5V
• Voltage - Clamping (Max) @ Ipp：760V
• Current - Peak Pulse (10/1000µs)：2A
• Power - Peak Pulse：1500W (1.5kW)
• Power Line Protection：No
• Applications：General Purpose
• Capacitance @ Frequency：-
• Operating Temperature：-55°C ~ 150°C (TJ)
• Mounting Type：Surface Mount

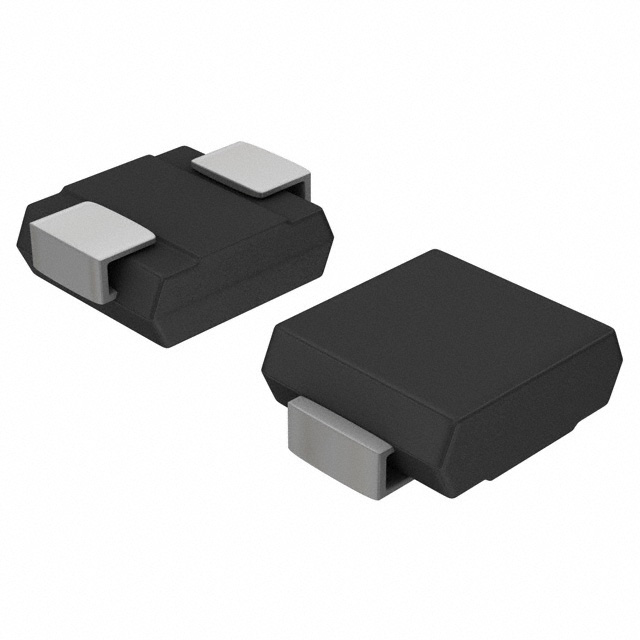

• Package / Case：DO-214AB, SMC
• Supplier Device Package：DO-214AB (SMC)
• Unidirectional Channels：1
• Grade：-
• Qualification：-

Tvs Diodes datasheet and documents for 1.5SMC550A
