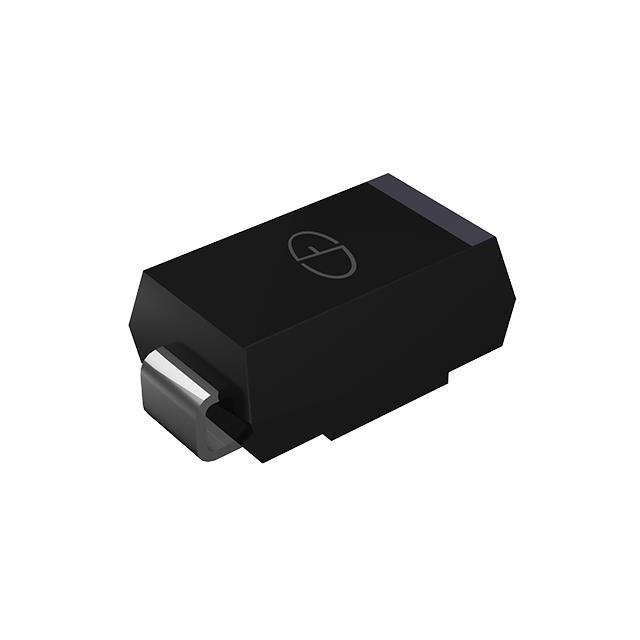

1.5SMC62A

1.5SMC62A is listed in the Tvs Diodes range at ChipApex. The manufacturer field lists Good-Ark Semiconductor. Its product description is TVS, UNI-DIR, 1500W, 53V, DO-214. Review the specifications below when checking this part for your BOM.

Tvs Diodes specifications for 1.5SMC62A

• Description：TVS, UNI-DIR, 1500W, 53V, DO-214
• Series：-
• Mfr：Good-Ark Semiconductor
• Package：Tape & Reel (TR),Cut Tape (CT)
• Type：Zener
• Bidirectional Channels：-
• Voltage - Reverse Standoff (Typ)：53V
• Voltage - Breakdown (Min)：58.9V
• Voltage - Clamping (Max) @ Ipp：85V
• Current - Peak Pulse (10/1000µs)：17.6A
• Power - Peak Pulse：1500W (1.5kW)
• Power Line Protection：No
• Applications：General Purpose
• Capacitance @ Frequency：-
• Operating Temperature：-55°C ~ 150°C (TJ)
• Mounting Type：Surface Mount
• Package / Case：DO-214AB, SMC
• Supplier Device Package：DO-214AB (SMC)
• Unidirectional Channels：1
• Grade：-
• Qualification：-

Tvs Diodes datasheet and documents for 1.5SMC62A
