1-770669-1

Headers, Male Pins Overview

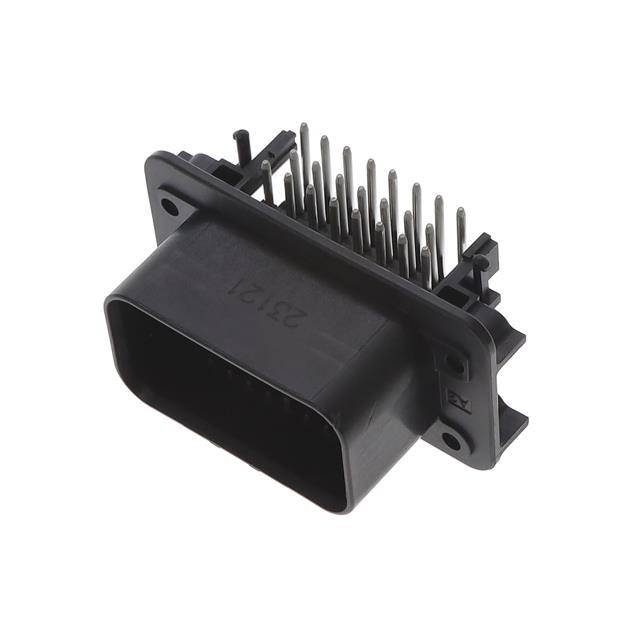

The 1-770669-1 is a 23-position AMP Automotive Header connector designed for panel mount, through-hole, and right-angle installation. It features a 0.157 inch (4.00mm) spacing. This component serves as an automotive header within the TE Connectivity product line, providing a robust connection solution for vehicle applications.

Headers, Male Pins Feature Summary

• Supports right-angle panel mount and through-hole installation configurations
• Designed specifically for demanding automotive electrical environments
• Provides secure interconnection via a 23-position header format

Headers, Male Pins Applications

• Automotive electronic systems
• Vehicle wiring harness assemblies
• Panel-mounted control modules

Headers, Male Pins Procurement Notes

Verify the specific part number against official TE Connectivity documentation to ensure compatibility with required housing or mating components. Confirm that the right-angle through-hole mounting style aligns with the target PCB layout constraints. Cross-reference the 0.157-inch spacing specification with existing system design requirements to prevent mechanical interference during assembly.

Headers, Male Pins Selection Notes

Select this component when a high-density 23-position connection is required in automotive applications. The right-angle orientation facilitates compact board layouts where space is limited. Ensure the through-hole mounting method matches the manufacturing process capabilities of the printed circuit board being utilized for the final assembly.

Headers, Male Pins Part Context

This connector belongs to the AMP series manufactured by TE Connectivity, formerly known as AMP Connectors. The brand has a long history in producing reliable interconnect solutions, originally established in 1941. TE Connectivity continues to lead the market in automotive and industrial connectivity technologies.

Headers, Male Pins Replacement Considerations

Consult official TE Connectivity substitution guides for direct replacements. Verify mechanical dimensions and pinout configurations before swapping with alternative part numbers to maintain system integrity.
