1-770967-0

Headers, Male Pins Overview

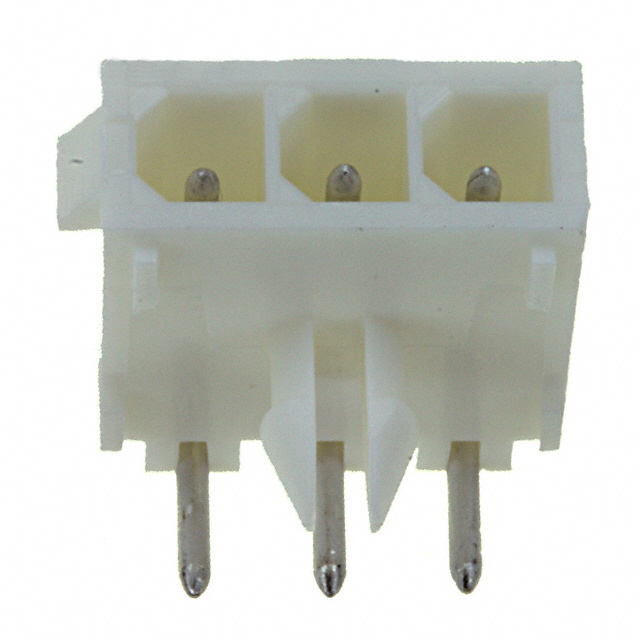

The 1-770967-0 is a rectangular power connector from the MATE-N-LOK series, manufactured by TE Connectivity AMP Connectors. It features a header configuration with three positions arranged in a single row. The component utilizes through-hole mounting with right-angle termination for secure PCB attachment. Contact materials consist of brass with tin plating to ensure reliable conductivity. Designed for general applications, it supports a rated voltage of 600V and operates within a temperature range of -20°C to 85°C. The housing is constructed from white nylon with UL94 V-0 flammability ratings.

Headers, Male Pins Feature Summary

• Right-angle through-hole header design for compact board integration
• Tin-plated brass contacts for corrosion resistance and conductivity
• Nylon insulation housing with UL94 V-0 flame retardancy

Headers, Male Pins Applications

• General industrial equipment interconnects
• Power distribution systems
• Control panel wiring

Headers, Male Pins Procurement Notes

Verify current availability status as this component may be subject to lifecycle changes. Confirm that the specific pin count and right-angle orientation match the target PCB layout requirements. Ensure compatibility with mating socket connectors within the same MATE-N-LOK series family. Check for any recent product change notices or end-of-life announcements prior to finalizing procurement plans.

Headers, Male Pins Selection Notes

Select this part when a low-profile, right-angle connection is required for three-wire circuits. The 4.14mm pitch accommodates standard wire gauges for moderate current loads. Consider the 600V rating for safety compliance in mains-connected applications. Verify that the through-hole footprint aligns with existing manufacturing capabilities and board space constraints.

Headers, Male Pins Part Context

This connector belongs to the MATE-N-LOK family, known for robust locking mechanisms and high current carrying capacity. The 1-770967-0 specifically serves as a header variant, providing male pins for mating with female sockets. Its right-angle form factor allows for efficient use of vertical space on printed circuit boards compared to inline configurations.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other 3-position right-angle headers from the MATE-N-LOK series with matching 4.14mm pitch. Ensure replacement parts maintain the same tin plating specification and UL94 V-0 rating for environmental consistency.
