1-770971-1

Headers, Male Pins Overview

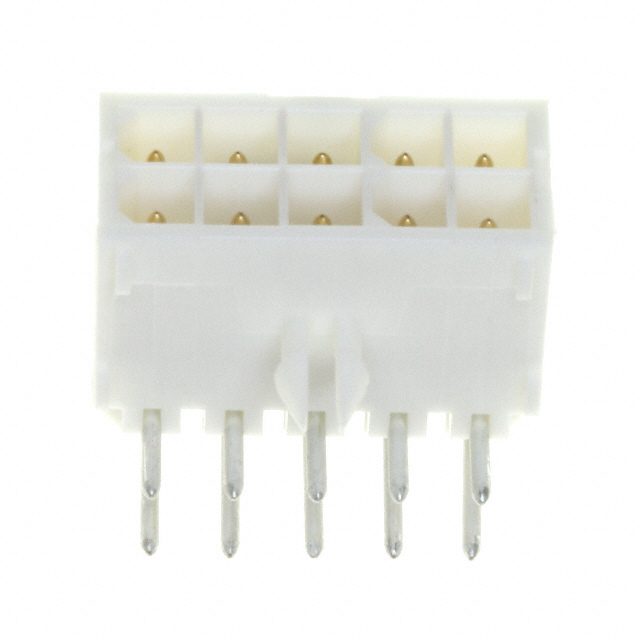

The TE Connectivity AMP Connectors part number 1-770971-1 is a rectangular header connector belonging to the Mini-Universal MATE-N-LOK series. It features a 10-position configuration with two rows, designed for wire-to-board applications. The connector utilizes a 4.14 mm pitch and employs right-angle through-hole mounting for PCB installation. Electrical specifications include a rated voltage of 600VAC and a current rating of 9.5A. The housing material is nylon, and the contacts are gold-plated brass pins. Operating temperature range spans from -55°C to 105°C.

Headers, Male Pins Feature Summary

• Right-angle design facilitates compact board layout integration
• Gold-plated contacts ensure reliable signal transmission
• Nylon insulation provides structural stability and thermal resistance

Headers, Male Pins Applications

• Industrial control systems
• Automotive electronics assemblies
• General-purpose circuit boards requiring high-current connections

Headers, Male Pins Procurement Notes

Verify the specific pin count and row configuration against the target PCB footprint before ordering. Confirm that the required current rating aligns with the system's operational demands. Ensure compatibility with mating connectors within the same Mini-Universal MATE-N-LOK family. Check for RoHS compliance requirements if operating in regulated environments.

Headers, Male Pins Selection Notes

Select this component when a robust, high-voltage connection is necessary in space-constrained designs. The right-angle orientation allows for efficient use of vertical clearance. Consider the 9.5A current capacity for power distribution tasks. Verify that the through-hole mounting method suits the manufacturing process.

Headers, Male Pins Part Context

This connector is part of the Mini-Universal MATE-N-LOK family, known for its versatility in various industrial and commercial applications. The series offers multiple configurations to accommodate different wiring needs. The 1-770971-1 variant specifically addresses requirements for moderate pin counts with high electrical ratings.

Headers, Male Pins Replacement Considerations

Direct substitutes may include other headers within the Mini-Universal MATE-N-LOK series with identical pitch and pin count. Cross-reference mechanical dimensions and electrical ratings to ensure functional equivalence. Consult manufacturer documentation for updated part numbers or alternative suppliers.
