1-770974-0

Headers, Male Pins Overview

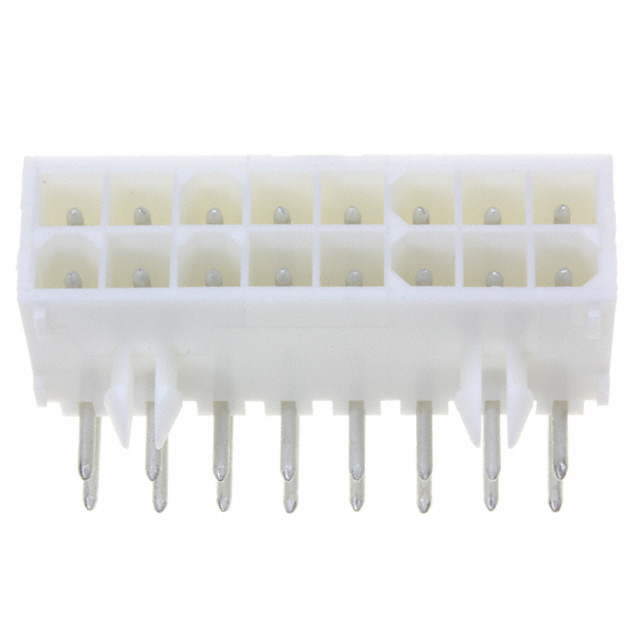

The 1-770974-0 is a Mini-Universal MATE-N-LOK header connector manufactured by TE Connectivity AMP Connectors. It features a right-angle through-hole mounting style with 16 positions arranged in a dual-row configuration. The mating pitch is 0.163 inches (4.14 mm). The contacts are male pins made of brass, featuring tin plating for reliable connection. The housing is constructed from white nylon (PA) with a UL94 V-0 flammability rating. Rated for 600VAC, this component utilizes a board lock feature and a slide-lock fastening mechanism to ensure secure assembly.

Headers, Male Pins Feature Summary

• Right-angle through-hole design for PCB integration
• Dual-row configuration with 16 male pin contacts
• Board lock feature for enhanced mechanical stability
• Slide-lock fastening system for secure mating

Headers, Male Pins Applications

• General industrial equipment interconnects
• Control panel wiring assemblies
• Power distribution units
• Automotive electronic modules

Headers, Male Pins Procurement Notes

Verify the specific part number against official TE Connectivity documentation to confirm current availability status. Check for any product change notices or end-of-life announcements that may affect supply chain continuity. Ensure compatibility with mating sockets within the same MATE-N-LOK series before procurement.

Headers, Male Pins Selection Notes

Select this component when a right-angle, dual-row header with a 4.14mm pitch is required. Confirm that the 600VAC voltage rating and brass contact material meet the application's electrical requirements. Verify that the through-hole mounting style aligns with the PCB design constraints.

Headers, Male Pins Part Context

This part belongs to the Mini-Universal MATE-N-LOK series, known for robust performance in high-current applications. It serves as a standard interconnect solution within TE Connectivity's extensive portfolio of rectangular connectors, offering reliability in demanding environments.

Headers, Male Pins Replacement Considerations

Check for direct substitutes within the MATE-N-LOK family. Verify that any alternative part maintains identical pin count, pitch, and mounting orientation to ensure mechanical fit.
