1-776087-2

Headers, Male Pins Overview

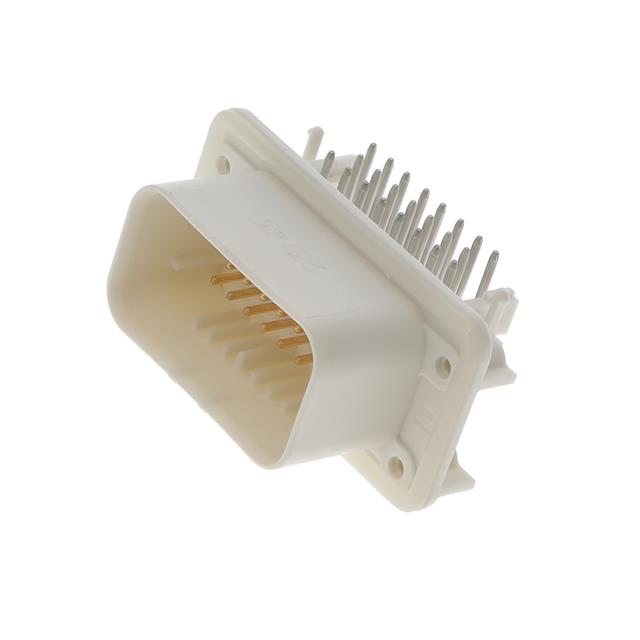

The 1-776087-2 is a panel mount, right-angle header connector from the AMP Automotive Headers series by TE Connectivity. It features 23 positions with a 4.00mm (0.157 inch) pitch. Designed for through-hole termination, this component utilizes male pin contacts made of brass with tin plating. The housing is constructed from plastic rated UL94 V-0 for flammability. It supports wire gauges ranging from 20 to 16 AWG and operates within a temperature range of -40°C to +105°C. The connector is rated for 250VAC.

Headers, Male Pins Feature Summary

• Right-angle design facilitates compact panel mounting configurations
• Tin-plated brass contacts ensure reliable electrical conductivity
• High-temperature resistant plastic housing meets UL94 V-0 standards

Headers, Male Pins Applications

• Automotive electronic control units
• Power distribution systems in vehicles
• Signal transmission between board and device

Headers, Male Pins Procurement Notes

Verify the specific suffix and revision level against the official TE Connectivity datasheet to confirm compatibility with mating housings and terminals. Ensure the procurement source provides valid traceability documentation. Confirm that the tin plating thickness and contact material specifications match the project requirements before finalizing the order.

Headers, Male Pins Selection Notes

Select this part when a right-angle, high-current automotive header is required. The 4.00mm pitch accommodates larger wire gauges suitable for power applications. Consider the 250VAC rating and -40°C to +105°C operating range for harsh environment suitability. Verify panel cutout dimensions align with the right-angle form factor.

Headers, Male Pins Part Context

This component belongs to the AMPSEAL family, widely used in automotive and industrial sectors. It complements other variants like 776087-1 and 776087-5, which offer different row counts or snap-in features. The 1-776087-2 specifically addresses needs for single-row, right-angle connections in space-constrained automotive assemblies.

Headers, Male Pins Replacement Considerations

Direct substitutes include 776087-2 for similar specifications. Evaluate 1-776087-1 if left-angle orientation is acceptable. Cross-reference with 776087-5 only if multi-row capacity is needed.
