1-776163-4

Headers, Male Pins Overview

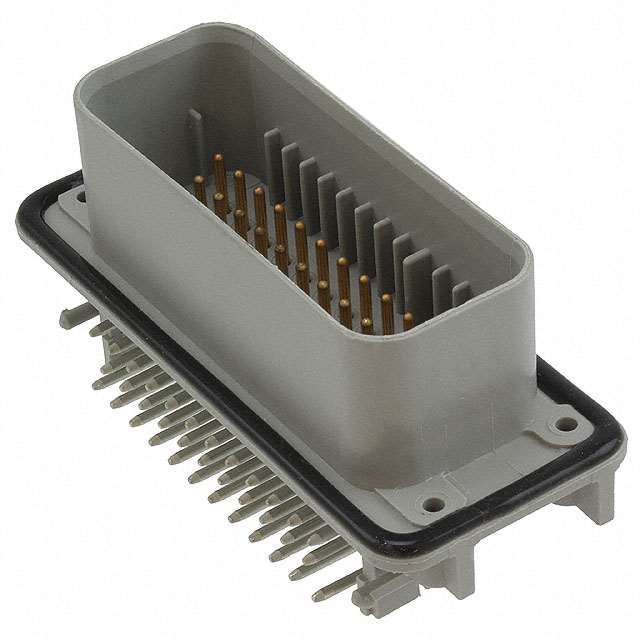

The TE Connectivity AMP Connectors part number 1-776163-4 is a pluggable terminal block header assembly belonging to the AMPSEAL series. It features 35 positions with a 0.157-inch (4.00mm) pitch and utilizes a male pin contact type. Designed for through-hole termination, this connector supports a voltage rating of 250VAC and includes an integrated gasket for environmental sealing. The housing is constructed from black thermoplastic material rated UL94 V-0.

Headers, Male Pins Feature Summary

• Provides robust electrical interconnection in demanding automotive and industrial environments
• Features an integrated gasket system designed to ensure effective environmental sealing against moisture and contaminants
• Utilizes a secure locking mechanism to maintain stable connection integrity during operation

Headers, Male Pins Applications

• Automotive electronic systems requiring high reliability
• Industrial control equipment interfaces
• Heavy-duty machinery power distribution networks

Headers, Male Pins Procurement Notes

Verify that the specific application environment aligns with the component's thermal and electrical ratings. Confirm compatibility with mating receptacles within the same AMPSEAL family. Ensure proper handling procedures are followed to protect the integrated gasket integrity during installation and storage phases.

Headers, Male Pins Selection Notes

Select this component when a high-density 35-position interface is required for panel or board mounting applications. Consider the 4.00mm spacing for adequate creepage distance. Evaluate the need for integrated sealing solutions versus separate gasketing methods based on the specific IP rating requirements of the target enclosure design.

Headers, Male Pins Part Context

This header assembly is part of the broader AMPSEAL product line, which is engineered for durability in harsh conditions. The series is widely recognized for its consistent performance in automotive and industrial sectors, offering standardized dimensions and reliable contact retention mechanisms across various position counts.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other 35-position AMPSEAL headers such as 776163-1 or 1-776163-1, provided they match the required orientation and sealing specifications.
