1-776163-5

Headers, Male Pins Overview

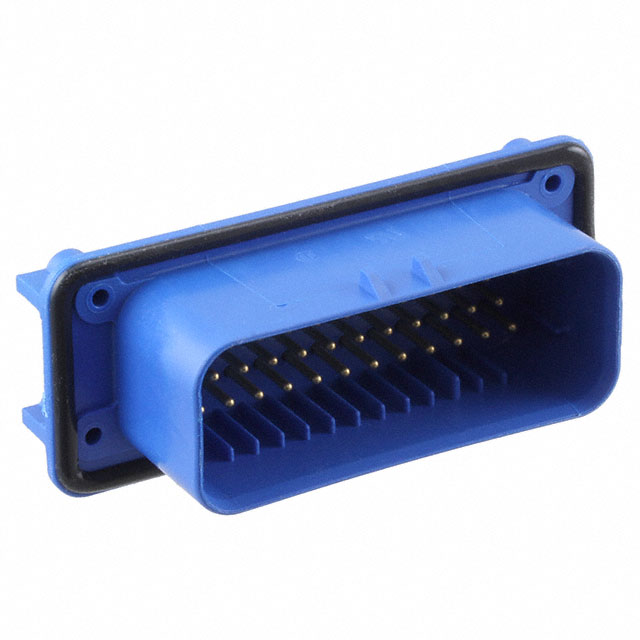

The TE Connectivity AMP Connectors part number 1-776163-5 is a high-reliability automotive header connector belonging to the AMPSEAL series. It features a 35-position configuration with male pin contacts and a 4.00mm (0.157 inch) pitch spacing. Designed for demanding power and signal applications, this component supports a current rating of 17 A and offers an ingress protection rating of IP6K9K. The connector utilizes a panel and PCB mounting style with right-angle through-hole termination. Its robust construction ensures performance in harsh environments, making it suitable for critical vehicle systems requiring secure electrical interconnections.

Headers, Male Pins Feature Summary

• Provides high reliability and durability for demanding automotive power and signal applications
• Features a robust design capable of withstanding harsh environmental conditions
• Ensures secure electrical interconnections through a specialized locking mechanism

Headers, Male Pins Applications

• Automotive engine control modules
• Vehicle body electronics systems
• Industrial control panels

Headers, Male Pins Procurement Notes

Verify that the specific part number matches the required 35-position configuration and 4mm pitch spacing before procurement. Confirm that the right-angle through-hole termination aligns with the target printed circuit board layout. Ensure the selected variant meets the necessary IP6K9K ingress protection standards for the intended operating environment. Cross-reference the manufacturer's latest documentation to confirm current availability and compliance status.

Headers, Male Pins Selection Notes

Select this component when a high-density 35-position header is required for automotive or industrial applications. The 4mm pitch allows for adequate spacing for higher current carrying capacity up to 17 A. Consider the right-angle orientation for space-constrained panel installations. Verify compatibility with mating female connectors within the same AMPSEAL family to ensure proper interface alignment and sealing performance.

Headers, Male Pins Part Context

This connector belongs to the AMPSEAL series by TE Connectivity AMP Connectors, a line known for rugged performance in automotive sectors. The series provides versatile solutions for various connection needs, emphasizing durability and environmental resistance. This specific model represents a standard header option within the lineup, designed to integrate seamlessly into larger assembly structures requiring reliable signal and power transmission.

Headers, Male Pins Replacement Considerations

Public confirmed substitute part numbers are not available.
