1-776163-6

Headers, Male Pins Overview

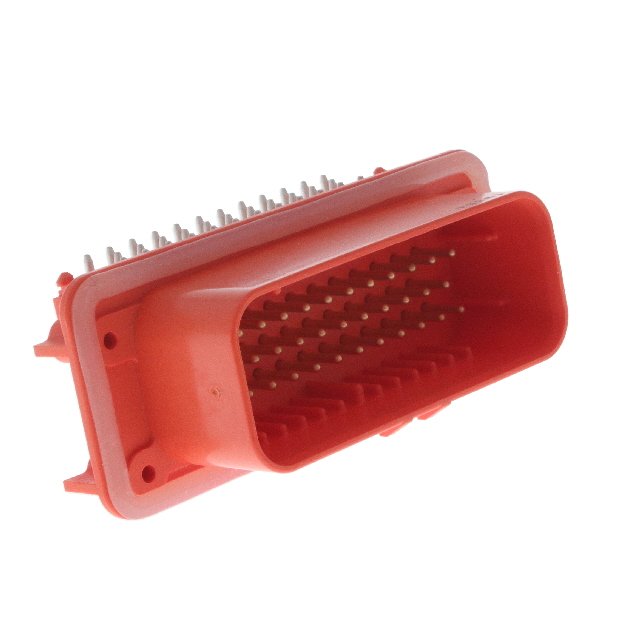

The TE Connectivity AMP Connectors model 1-776163-6 is a 35-position connector header from the Ampseal series. It features a male gender with three rows and utilizes a 4.00mm (0.157 inch) pitch. The component is designed for panel mount and through-hole installation, offering right-angle termination. Contact plating is specified as gold over nickel to ensure reliable conductivity. The housing is constructed from glass-filled polybutylene terephthalate (PBT), providing structural integrity and thermal resistance suitable for demanding automotive and industrial environments.

Headers, Male Pins Feature Summary

• Robust mechanical design engineered for high-reliability connections in severe automotive and industrial applications
• Integrated sealing system utilizing adhesive-bonded silicone gaskets to achieve IP6K9K ingress protection ratings
• Color-coded keying options available to prevent mating errors and ensure correct circuit alignment

Headers, Male Pins Applications

• Automotive engine control modules and power distribution systems
• Industrial machinery control panels and sensor interfaces
• Heavy-duty transportation electrical architectures

Headers, Male Pins Procurement Notes

Verify the specific suffix designation against official TE Connectivity documentation to confirm exact contact plating thickness, housing color, and gasket configuration. Ensure compatibility with corresponding mating housings and terminal crimping tools. Cross-reference environmental certifications such as EU RoHS and ELV requirements prior to final procurement decisions.

Headers, Male Pins Selection Notes

Select this component when requiring a high-current, sealed interconnect solution with rigid panel mounting capabilities. The right-angle orientation facilitates compact board layout arrangements. Confirm that the 4.00mm pitch aligns with existing harness spacing constraints and that the gold-plated contacts meet the required cycle life and corrosion resistance standards for the target application environment.

Headers, Male Pins Part Context

This part belongs to the Ampseal family of connectors, renowned for durability in harsh conditions. The series supports various configurations including straight and right-angle headers, plugs, and sockets. These connectors are widely utilized across global manufacturing sectors where vibration resistance and waterproofing are critical operational requirements.

Headers, Male Pins Replacement Considerations

Direct substitutes within the same series include part numbers 1-776163-1 and 1-776180-6. Verify pin count, row configuration, and termination style before substitution. Alternative series may require adapter solutions or redesign of mounting hardware due to dimensional differences.
