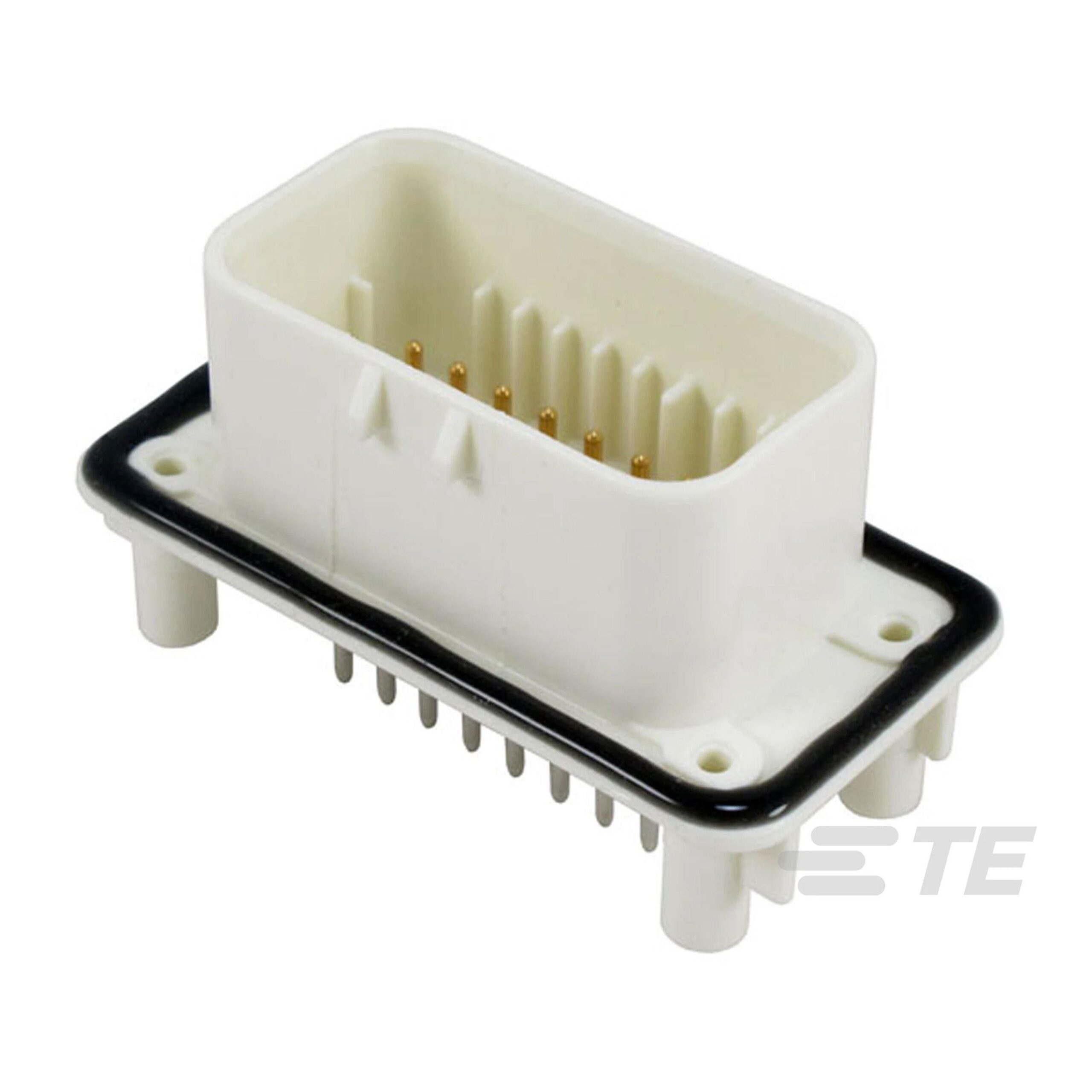

1-776228-2

$13.58

Description：CONN HEADER VERT 23POS 4MM
Series：AMPSEAL
Mfr：TE Connectivity AMP Connectors
Package：Bulk

SKU:06e1548792e7 Category: Headers, Male Pins Brand: TE Connectivity AMP Connectors

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

1-776228-2 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN HEADER VERT 23POS 4MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 1-776228-2

Description：CONN HEADER VERT 23POS 4MM
Series：AMPSEAL
Mfr：TE Connectivity AMP Connectors
Package：Bulk
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.157" (4.00mm)
Number of Positions：23
Number of Rows：3
Row Spacing - Mating：0.157" (4.00mm)
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Panel Mount, Through Hole
Termination：Solder
Fastening Type：Locking Ramp
Contact Length - Mating：-
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：-
Contact Shape：Circular
Contact Finish - Mating：Gold-Palladium
Contact Finish Thickness - Mating：-
Contact Finish - Post：-
Contact Material：Brass
Insulation Material：Polybutylene Terephthalate (PBT), Glass Filled
Features：Mounting Flange, Sealed
Operating Temperature：-40°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：-
Insulation Color：Natural
Current Rating (Amps)：Varies by Wire Gauge
Voltage Rating：250VAC

Headers, Male Pins datasheet and documents for 1-776228-2

1-776228-2

Headers, Male Pins Overview

The 1-776228-2 is a rectangular header connector manufactured by TE Connectivity AMP Connectors, designed for automotive applications. It features a vertical orientation with 23 positions arranged in a single row. The component utilizes a through-hole termination method for secure PCB mounting. Constructed as a housing unit, it serves as the receptacle interface for mating with corresponding pins or terminals to establish electrical pathways within vehicle systems.

Headers, Male Pins Feature Summary

Vertical pin configuration facilitates standard printed circuit board integration
Automotive-grade construction ensures reliability under demanding environmental conditions
Single-row layout supports compact assembly requirements

Headers, Male Pins Applications

Automotive electronic control units
Vehicle wiring harness interfaces
Dashboard and instrument panel connections

Headers, Male Pins Procurement Notes

Verify that the specific variant matches the required 23-position count and vertical orientation before procurement. Confirm that the intended application environment aligns with automotive specifications. Ensure compatibility with mating terminals is validated against official TE Connectivity documentation to prevent interface mismatches during assembly.

Headers, Male Pins Selection Notes

Select this component when a vertical, 23-position automotive header is required. Evaluate space constraints to ensure the single-row format fits the designated PCB area. Assess thermal and mechanical loads to confirm suitability for the target automotive subsystem. Cross-reference mating terminal specifications to guarantee proper engagement and signal integrity.

Headers, Male Pins Part Context

This part belongs to the broader portfolio of TE Connectivity AMP Connectors, which specializes in electrical interconnection solutions. The manufacturer provides extensive connectivity products including connectors, sensors, and cables. This specific model represents a standard automotive housing solution within their established lineup of reliable interconnect components.
