1-776231-5

Headers, Male Pins Overview

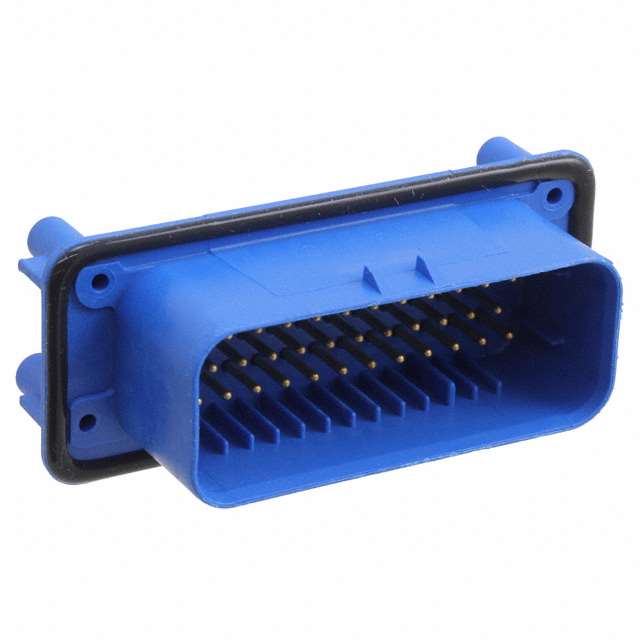

The TE Connectivity AMP Connectors model 1-776231-5 is a vertical header assembly featuring 35 positions with a 4.00mm pitch. Designed for panel and through-hole mounting, it utilizes a three-row configuration to accommodate wire-to-board connections. The connector incorporates a locking ramp mechanism and includes an integrated gasket for environmental sealing. Constructed with brass contacts and PBT insulation, it supports automotive and industrial applications within a temperature range of -40°C to 125°C.

Headers, Male Pins Feature Summary

• Features a three-row header design with a 4.00mm pitch for high-density signal routing
• Incorporates a locking ramp mechanism to secure mating engagement
• Includes an integrated gasket providing environmental protection against contaminants

Headers, Male Pins Applications

• Automotive electronic systems requiring sealed interconnects
• Industrial control panels needing robust signal transmission
• Wire-to-board connections in harsh operating environments

Headers, Male Pins Procurement Notes

Verify the specific suffix designation when sourcing, as variations may exist between 1-776231-5 and similar part numbers like 1-776231-6 or 776231-5. Confirm that the required color coding and contact plating match the project specifications. Ensure compatibility with mating housings from the same AMPSEAL series family before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a sealed, high-pin-count header is necessary for panel-mounted installations. The 4.00mm pitch allows for adequate spacing, while the integrated gasket simplifies enclosure sealing requirements. Consider the thermal rating and current capacity relative to the specific wire gauge used in the application circuit.

Headers, Male Pins Part Context

This connector belongs to the AMPSEAL series, a widely recognized line of automotive-grade connectors manufactured by TE Connectivity. The series is engineered for reliability in demanding environments, offering various configurations including headers, housings, and terminals. The AMPSEAL architecture ensures consistent performance across diverse vehicle and industrial platforms.

Headers, Male Pins Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify cross-references with official TE Connectivity resources if a direct replacement is required.
