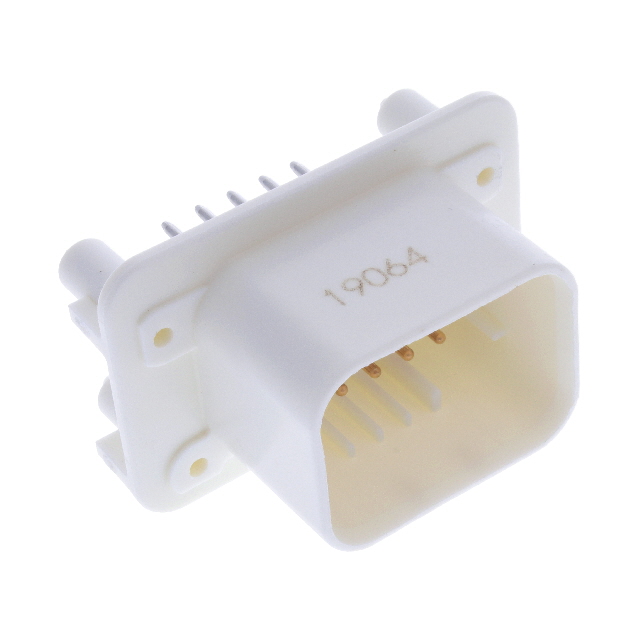

1-776261-2

1-776261-2 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN HEADER VERT 14POS 4MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 1-776261-2

• Description：CONN HEADER VERT 14POS 4MM
• Series：AMPSEAL
• Mfr：TE Connectivity AMP Connectors
• Package：Bulk
• Connector Type：Header
• Contact Type：Male Pin
• Pitch - Mating：0.157" (4.00mm)
• Number of Positions：14
• Number of Rows：3
• Row Spacing - Mating：0.157" (4.00mm)
• Number of Positions Loaded：All
• Style：Board to Cable/Wire
• Shrouding：Shrouded - 4 Wall
• Mounting Type：Panel Mount, Through Hole
• Termination：Solder
• Fastening Type：Locking Ramp
• Contact Length - Mating：-
• Contact Length - Post：-
• Overall Contact Length：-
• Insulation Height：-
• Contact Shape：Circular
• Contact Finish - Mating：Gold-Palladium
• Contact Finish Thickness - Mating：-
• Contact Finish - Post：-
• Contact Material：Brass
• Insulation Material：Polybutylene Terephthalate (PBT), Glass Filled
• Features：Mounting Flange, Sealable
• Operating Temperature：-40°C ~ 125°C
• Ingress Protection：-
• Material Flammability Rating：-
• Insulation Color：Natural
• Current Rating (Amps)：Varies by Wire Gauge
• Voltage Rating：250VAC

Headers, Male Pins datasheet and documents for 1-776261-2
