1-776262-4

$11.07

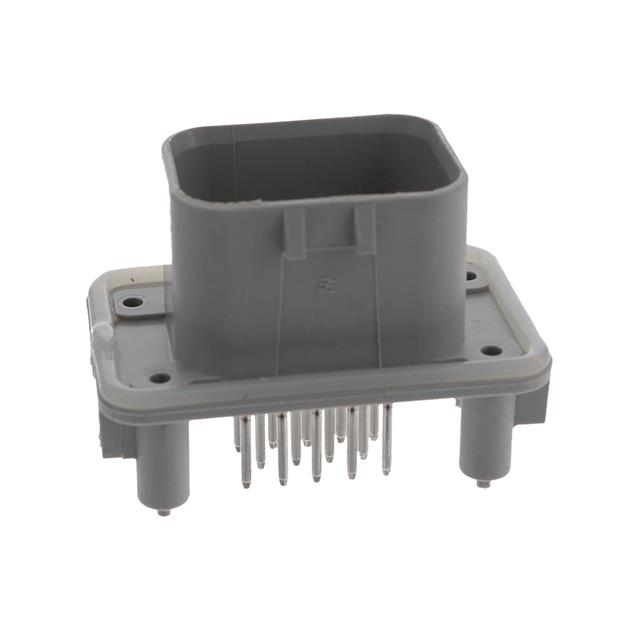

Description：CONN HEADER VERT 14POS 4MM
Series：AMPSEAL
Mfr：TE Connectivity AMP Connectors
Package：Bulk

SKU:1ce69c1c6397 Category: Headers, Male Pins Brand: TE Connectivity AMP Connectors

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

1-776262-4 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN HEADER VERT 14POS 4MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 1-776262-4

Description：CONN HEADER VERT 14POS 4MM
Series：AMPSEAL
Mfr：TE Connectivity AMP Connectors
Package：Bulk
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.157" (4.00mm)
Number of Positions：14
Number of Rows：3
Row Spacing - Mating：0.157" (4.00mm)
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Panel Mount, Through Hole
Termination：Solder
Fastening Type：Locking Ramp
Contact Length - Mating：-
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：-
Contact Shape：Circular
Contact Finish - Mating：Gold-Palladium
Contact Finish Thickness - Mating：-
Contact Finish - Post：-
Contact Material：Brass
Insulation Material：Polybutylene Terephthalate (PBT), Glass Filled
Features：Mounting Flange, Sealed
Operating Temperature：-40°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：-
Insulation Color：Gray
Current Rating (Amps)：Varies by Wire Gauge
Voltage Rating：250VAC

Headers, Male Pins datasheet and documents for 1-776262-4

1-776262-4

Headers, Male Pins Overview

The 1-776262-4 is a vertical, wire-to-board header connector from the TE Connectivity AMPSEAL series. It features a 14-position configuration arranged in a 3-row layout with a 4mm (0.157 inch) centerline. The connector utilizes tin-plated contacts and is designed for through-hole PCB mounting. It offers sealable capabilities suitable for automotive and industrial applications, operating within a temperature range of -40°C to +125°C.

Headers, Male Pins Feature Summary

Sealable design for environmental protection
Vertical wire-to-board termination style
Three-row pin configuration for high density

Headers, Male Pins Applications

Automotive electronic systems
Industrial control equipment
Wire-to-board interconnections

Headers, Male Pins Procurement Notes

Verify the specific suffix against official TE Connectivity documentation to confirm plating and material variations. Ensure compatibility with mating AMPSEAL housings. Confirm RoHS compliance status via current datasheets before integration into regulated assemblies.

Headers, Male Pins Selection Notes

Select this component for applications requiring robust, sealable connections in automotive or industrial environments. The 4mm pitch supports higher current capacities compared to finer pitches. Verify that the three-row format fits within the available board space and mating housing constraints.

Headers, Male Pins Part Context

This part belongs to the AMPSEAL family, a widely used series for automotive and heavy-duty industrial connectors. The series is known for its reliability and sealing options. The 1-776262-4 specifically represents a header variant within this ecosystem, designed to mate with corresponding AMPSEAL plug housings.
