1-794067-0

Headers, Male Pins Overview

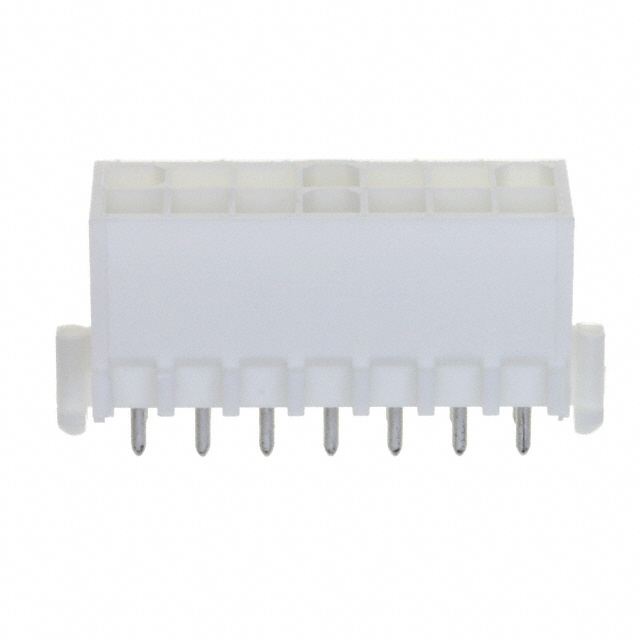

The TE Connectivity AMP Connectors part number 1-794067-0 is a vertical wire-to-board header from the Mini-Universal MATE-N-LOK series. It features 14 positions with a 4.14mm pitch and utilizes brass contacts plated with tin. Designed for through-hole installation, it supports a rated voltage of 600 V AC and a current rating of 9.5A. The connector system is configured for wire-to-board applications, ensuring reliable signal and power transmission in industrial environments.

Headers, Male Pins Feature Summary

• Vertical pin header configuration for direct PCB mounting
• Mini-Universal MATE-N-LOK series design for secure mating
• Tin-plated brass contacts for corrosion resistance
• Through-hole termination method for robust mechanical stability

Headers, Male Pins Applications

• Industrial control systems
• General-purpose electronic equipment
• Power distribution modules

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix to confirm contact plating thickness and material composition, as variations exist within the MATE-N-LOK family. Ensure compatibility with corresponding socket housings before integration. Cross-reference the latest datasheet for environmental compliance status and updated mechanical dimensions to prevent assembly mismatches during procurement.

Headers, Male Pins Selection Notes

Select this component when a 14-position vertical interconnect is required for high-current applications up to 9.5A. The 4.14mm pitch accommodates standard wire gauges suitable for general industrial use. Consider the Mini-Universal MATE-N-LOK series benefits if modular expansion or mixed position counts are needed within the same system architecture.

Headers, Male Pins Part Context

This connector belongs to the Mini-Universal MATE-N-LOK product line, known for its versatility in mixed position count assemblies. The series allows for flexible circuit board layouts by combining different terminal counts in a single housing structure. It represents a standard solution for reliable wire-to-board connections in TE Connectivity's broad portfolio of interconnect devices.

Headers, Male Pins Replacement Considerations

Compatible counterparts include other 14-position headers within the Mini-Universal MATE-N-LOK series, such as part numbers 1-794068-0 or 1-794072-0, provided they match the vertical orientation and through-hole termination requirements. Verify that substitute parts maintain the identical 4.14mm pitch and 600V/9.5A ratings.
