1-794072-0

Headers, Male Pins Overview

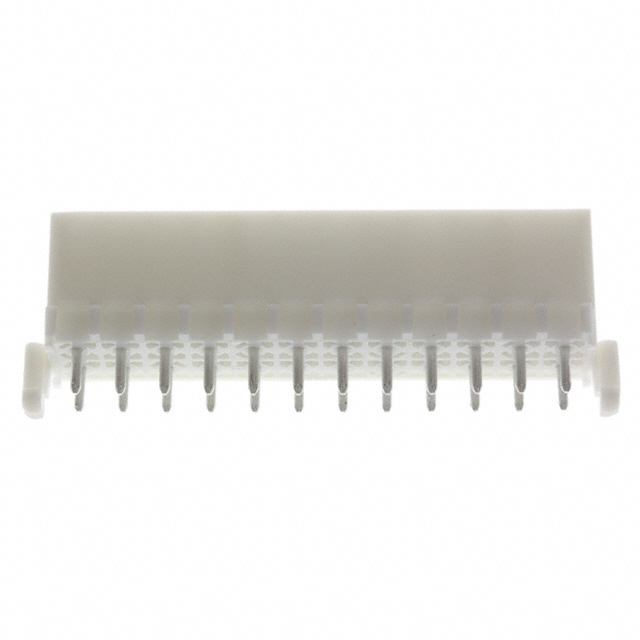

The TE Connectivity AMP Connectors part number 1-794072-0 is a pin and socket connector belonging to the MATE-N-LOK series. It features a header configuration with 24 positions arranged in a dual-row layout. The component utilizes brass contacts with tin plating for reliable electrical performance. Designed for vertical through-hole PCB mounting, it offers a pitch of 4.14 mm. The housing is constructed from white nylon material rated UL 94 V-0 for flammability. Electrical ratings include a voltage capacity of 600 V and a current rating of 9.5 A.

Headers, Male Pins Feature Summary

• Dual-row header design providing 24 connection positions
• Vertical through-hole termination method for secure PCB installation
• Tin-plated brass contacts ensuring stable conductivity
• Nylon housing with UL 94 V-0 flammability classification

Headers, Male Pins Applications

• Industrial control systems requiring robust power distribution
• General-purpose electronic equipment interconnections
• Appliance wiring harnesses connecting to printed circuit boards

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the manufacturer datasheet to confirm contact plating thickness and housing color options. Ensure the selected variant matches the required current rating and thermal characteristics for the intended application environment. Cross-reference the package quantity with distributor listings to align with production volume needs without relying on speculative availability data.

Headers, Male Pins Selection Notes

Select this component when a high-current, durable rectangular connector is needed for vertical board mounting. The 4.14 mm pitch accommodates standard wire gauges suitable for power applications. Consider the dual-row arrangement for space-constrained designs requiring higher pin density. Confirm compatibility with mating sockets within the same MATE-N-LOK family to ensure proper mechanical engagement and electrical continuity.

Headers, Male Pins Part Context

This connector is part of the extensive MATE-N-LOK product line by TE Connectivity AMP Connectors, a brand established in 1941 known for pioneering crimping technologies. The series is widely utilized across various industries for its reliability in transmitting power and signals. As a legacy product, it represents a standardized solution for board-to-wire connections, maintaining relevance in modern industrial and commercial electronics manufacturing.

Headers, Male Pins Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify if alternative pin counts or row configurations within the same MATE-N-LOK series meet spatial and functional requirements before seeking external substitutes.
