1-794623-0

Headers, Male Pins Overview

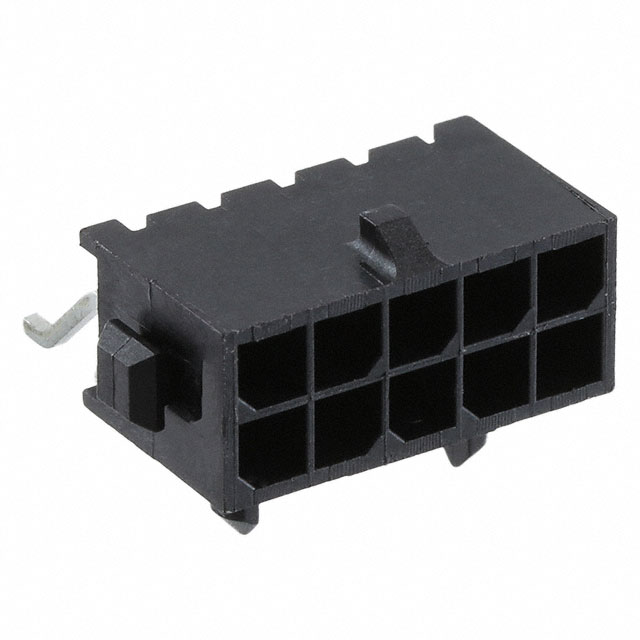

The 1-794623-0 is a board-to-cable/wire header connector from the Micro MATE-N-LOK series by TE Connectivity AMP Connectors. It features a vertical orientation with solder termination for PCB mounting. The connector supports a rated voltage of 250V and utilizes a 3mm pitch spacing. This component is designed for secure electrical interconnections in general-purpose applications, offering reliable performance within its specified environmental and electrical limits.

Headers, Male Pins Feature Summary

• Solder termination ensures stable PCB attachment
• Vertical header design facilitates board-to-wire connections
• Micro MATE-N-LOK series compatibility

Headers, Male Pins Applications

• General-purpose electronic assemblies
• Board-to-cable interconnects
• Wire-to-board connections

Headers, Male Pins Procurement Notes

Verify part authenticity through authorized TE Connectivity distributors or official channels. Confirm that the received component matches the 1-794623-0 designation and Micro MATE-N-LOK series specifications. Check for physical integrity and correct pin configuration before integration into manufacturing processes to ensure compliance with technical requirements.

Headers, Male Pins Selection Notes

Select this connector when a vertical, solder-terminated header is required for board-to-wire applications. Ensure the design accommodates the 3mm pitch and 250V rating. Verify that the Micro MATE-N-LOK mating system aligns with existing mechanical constraints and that soldering processes are compatible with the component's thermal characteristics.

Headers, Male Pins Part Context

This component belongs to the Micro MATE-N-LOK family, a widely used rectangular connector system known for reliability in various industrial and commercial applications. The series offers diverse configurations including headers, housings, and contacts, supporting both crimp and solder terminations to meet different assembly needs.

Headers, Male Pins Replacement Considerations

Direct substitutes may include other Micro MATE-N-LOK series headers with identical pin counts, pitch, and termination methods. Verify mechanical fit and mating compatibility with existing connectors before substitution.
