1-794625-0

Headers, Male Pins Overview

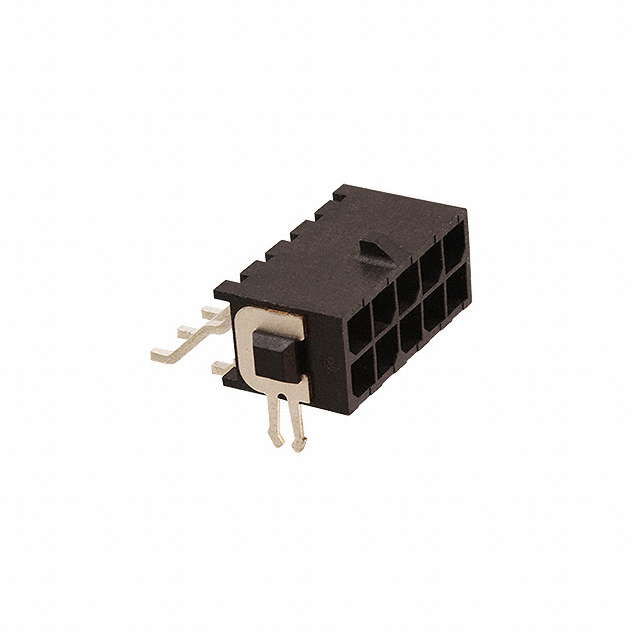

The 1-794625-0 is a Micro MATE-N-LOK series header connector manufactured by TE Connectivity AMP Connectors. It features a surface mount right-angle termination style with a 3mm (0.118 inch) mating pitch. The component provides 10 positions arranged in a dual-row configuration, utilizing square male pin contacts. Constructed with black polyamide insulation and brass terminals, it supports a rated voltage of 250V and operates within a temperature range of -40°C to 105°C. The housing meets UL94 V-0 flammability ratings.

Headers, Male Pins Feature Summary

• Surface mount right-angle design for compact PCB integration
• Dual-row header configuration with 10 positions
• Gold-plated mating contact surfaces for reliable conductivity
• Polyamide insulation with UL94 V-0 flame retardancy

Headers, Male Pins Applications

• General purpose electronic interconnections
• Board-to-cable or board-to-wire assemblies
• Industrial control system signal routing

Headers, Male Pins Procurement Notes

Verify the specific part number suffix against official TE Connectivity documentation to confirm position count and termination type. Ensure compatibility with mating housing components from the same Micro MATE-N-LOK family. Confirm that the surface mount footprint matches the target PCB layout specifications before procurement.

Headers, Male Pins Selection Notes

Select this component when a right-angle surface mount header is required for high-density connections. The 3mm pitch accommodates standard wire gauges within the series current ratings. Consider the mechanical stability provided by the right-angle orientation for space-constrained vertical mounting scenarios.

Headers, Male Pins Part Context

This connector belongs to the Micro MATE-N-LOK family, known for robust rectangular interconnect solutions. The series offers various configurations including through-hole and surface mount options. The 1-794625-0 specifically addresses needs for automated assembly processes due to its SMD packaging and right-angle form factor.

Headers, Male Pins Replacement Considerations

Direct substitutes include other variants within the 794625 base product number series, such as different position counts like 1-794625-4 or 3-794625-8. Verify that any replacement maintains the identical 3mm pitch and right-angle SMD termination characteristics.
