1-794629-0

Headers, Male Pins Overview

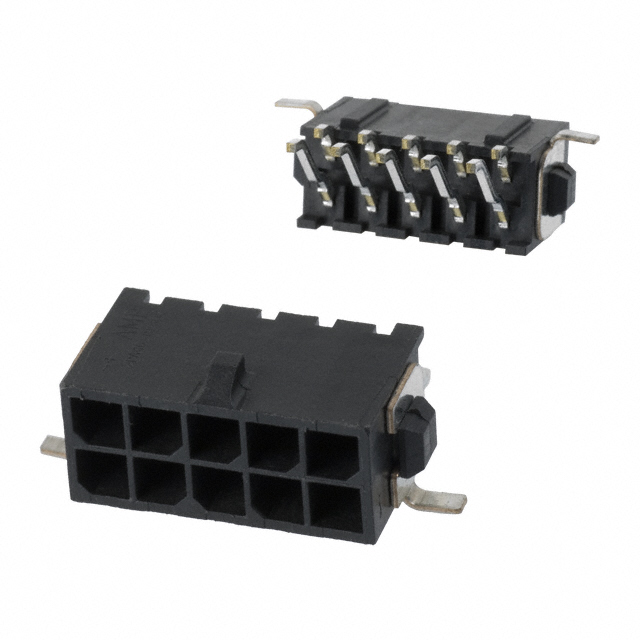

The TE Connectivity AMP Connectors part number 1-794629-0 is a rectangular header connector belonging to the Micro MATE-N-LOK series. It features a surface mount, right-angle termination style designed for board-to-cable or board-to-wire applications. The connector provides 10 positions with a dual row configuration and a mating pitch of 0.118 inches (3.00mm). It utilizes square male pin contacts with gold or gold-pallium plating on the mating interface and tin plating on the post. The housing is constructed from black polyamide (PA) nylon with a UL94 V-0 flammability rating. Rated voltage is 250V, and it operates within a temperature range of -40°C to 105°C.

Headers, Male Pins Feature Summary

• Right-angle surface mount design facilitates compact board-to-cable interconnections
• Dual row configuration with 10 positions ensures efficient signal routing
• Gold or gold-pallium contact plating provides reliable electrical conductivity
• Polyamide insulation housing offers thermal stability and fire resistance

Headers, Male Pins Applications

• Board-to-cable connections in industrial control systems
• Board-to-wire assemblies in consumer electronics
• General purpose interconnects requiring right-angle mounting
• Automotive electronic modules

Headers, Male Pins Procurement Notes

Verify that the specific ordering suffix matches the required contact plating and packaging format. Confirm the pin count and row configuration align with the target PCB footprint. Ensure the supplier provides valid traceability documentation for the TE Connectivity AMP Connectors brand. Check RoHS compliance status against current regulatory requirements before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a right-angle surface mount header is required for low to medium current applications. The 3.00mm pitch allows for standard spacing while maintaining a dual-row density. Consider the mechanical locking features and thermal ratings if operating in high-temperature environments. Validate that the housing material compatibility meets the assembly process requirements.

Headers, Male Pins Part Context

This connector is part of the Micro MATE-N-LOK family, known for robust performance in demanding environments. The series supports various pin counts and termination styles, making it versatile for diverse electronic designs. TE Connectivity AMP Connectors manufactures these components using established processes for reliability and consistency across production batches.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other TE Connectivity AMP Connectors headers within the same Micro MATE-N-LOK series with identical pitch and pin count. Verify mechanical dimensions and terminal compatibility before substitution. Cross-reference with equivalent products from other manufacturers only if full dimensional and electrical equivalence is confirmed.
