Headers, Male Pins Overview

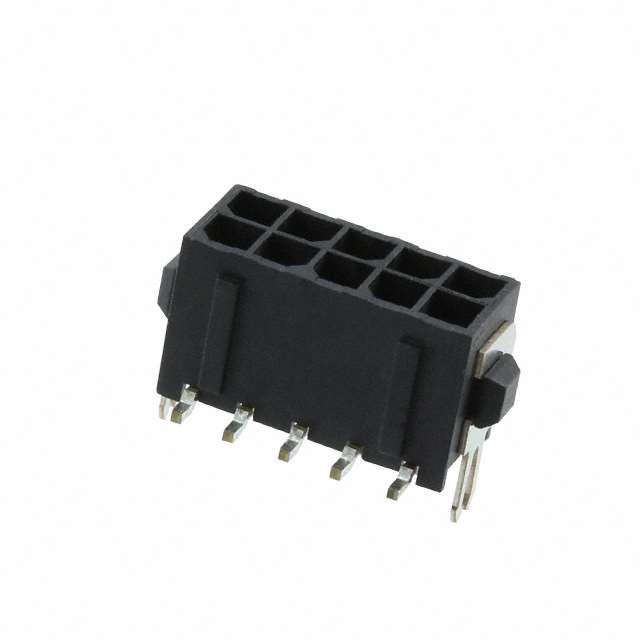

The 1-794633-0 is a Micro MATE-N-LOK series header connector manufactured by TE Connectivity AMP Connectors. It features a surface mount design with 10 positions and a 3.00mm pitch. The unit utilizes square pin contacts made of brass, finished with tin plating on both the mating interface and posts. Constructed from black polyamide insulation rated UL94 V-0, it supports a voltage rating of 250V and operates within a temperature range of -40°C to 105°C.

Headers, Male Pins Feature Summary

• Surface mount technology enables automated pick-and-place assembly processes.
• Integrated board lock mechanism ensures secure physical attachment to the circuit board.
• Four-wall shrouded housing provides alignment and protection for mating connections.

Headers, Male Pins Applications

• General electronic interconnect systems
• Board-to-cable or wire assemblies
• Industrial control equipment

Headers, Male Pins Procurement Notes

Verify the specific suffix against official TE Connectivity documentation to confirm exact contact plating and packaging specifications. Ensure compatibility with surface mount reflow profiles and check for any recent product change notices regarding material composition or dimensional tolerances before finalizing procurement.

Headers, Male Pins Selection Notes

Select this component when a low-profile, surface-mounted solution is required for reliable signal or power transmission. The dual-row configuration maximizes density while maintaining standard spacing. Confirm that the tin-plated contacts meet the environmental requirements for the intended application environment.

Headers, Male Pins Part Context

This part belongs to the Micro MATE-N-LOK family, known for robust rectangular connectors. It serves as a surface-mount variant within the broader 794633 series, offering alternatives to through-hole designs like the 4-794633-4. The series supports various pin counts and termination styles for diverse mounting needs.

Headers, Male Pins Replacement Considerations

Direct substitutes include other variants in the 794633 series such as 4-794633-4, though differences in termination type (SMD vs. Through-Hole) must be evaluated. Verify mechanical footprint and electrical ratings match the original design requirements.
