1-794634-2

$1.58

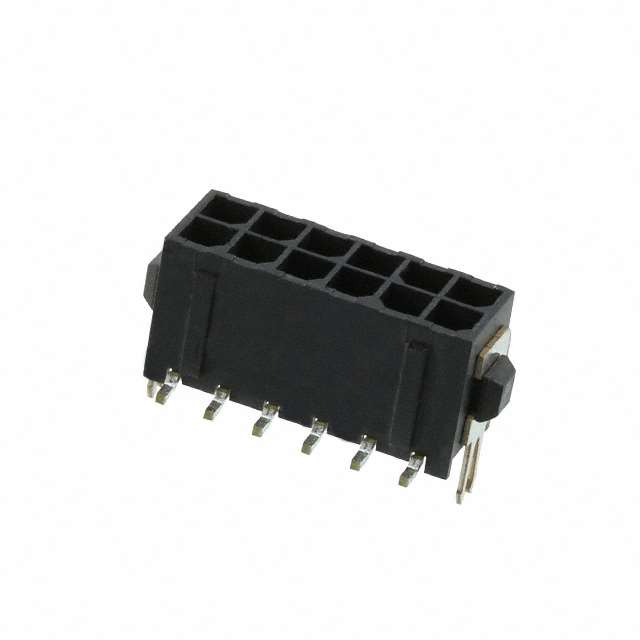

Description：CONN HEADER SMD 12POS 3MM
Series：Micro MATE-N-LOK
Mfr：TE Connectivity AMP Connectors
Package：Bulk

SKU:af518292577b Category: Headers, Male Pins Brand: TE Connectivity AMP Connectors

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

1-794634-2 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN HEADER SMD 12POS 3MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 1-794634-2

Description：CONN HEADER SMD 12POS 3MM
Series：Micro MATE-N-LOK
Mfr：TE Connectivity AMP Connectors
Package：Bulk
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.118" (3.00mm)
Number of Positions：12
Number of Rows：2
Row Spacing - Mating：0.118" (3.00mm)
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Locking Ramp
Contact Length - Mating：-
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.364" (9.25mm)
Contact Shape：Square
Contact Finish - Mating：Gold or Gold-Palladium
Contact Finish Thickness - Mating：15.0µin (0.38µm)
Contact Finish - Post：Tin-Lead
Contact Material：Brass
Insulation Material：Polyamide (PA), Nylon
Features：Board Lock, Pick and Place
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：Varies by Wire Gauge
Voltage Rating：250V

Headers, Male Pins datasheet and documents for 1-794634-2

1-794634-2

Headers, Male Pins Overview

The 1-794634-2 is a surface-mount header assembly from the Micro MATE-N-LOK series by TE Connectivity AMP Connectors. It features a 12-position, single-row configuration with a 3mm pitch. The connector utilizes gold-plated contacts and is designed for vertical PCB mounting via SMT termination. This component serves as a male pin header for wire-to-board interconnections.

Headers, Male Pins Feature Summary

Surface-mount technology compatible design
Gold-plated contact finish for reliable conductivity
Single-row 12-position layout

Headers, Male Pins Applications

Wire-to-board interconnections
General electronic circuit assemblies
Industrial control systems

Headers, Male Pins Procurement Notes

Verify the specific suffix against official TE Connectivity documentation to confirm exact plating thickness and reel packaging specifications. Ensure compatibility with automated pick-and-place equipment for surface-mount assembly processes. Cross-reference the datasheet for reflow soldering profile requirements to maintain joint integrity during manufacturing.

Headers, Male Pins Selection Notes

Select this part when a low-profile, surface-mount solution is required for 3mm pitch applications. The Micro MATE-N-LOK series offers robust mechanical retention. Consider the 12-position count and single-row geometry for board space constraints. Verify that the operating temperature range meets the environmental demands of the target application.

Headers, Male Pins Part Context

This component belongs to the Micro MATE-N-LOK family, known for compact rectangular connectors. The series supports various termination styles including through-hole and surface mount. The 1-794634-2 specifically addresses needs for high-density surface-mount headers in modern electronics manufacturing.
