1-794636-0

$2.81

Description：CONN HEADER SMD 10POS 3MM
Series：Micro MATE-N-LOK
Mfr：TE Connectivity AMP Connectors
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:f85b3601026d Category: Headers, Male Pins Brand: TE Connectivity AMP Connectors

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

1-794636-0 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN HEADER SMD 10POS 3MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 1-794636-0

Description：CONN HEADER SMD 10POS 3MM
Series：Micro MATE-N-LOK
Mfr：TE Connectivity AMP Connectors
Package：Tape & Reel (TR),Cut Tape (CT)
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.118" (3.00mm)
Number of Positions：10
Number of Rows：2
Row Spacing - Mating：0.118" (3.00mm)
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Surface Mount
Termination：Solder
Fastening Type：Locking Ramp
Contact Length - Mating：-
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.364" (9.25mm)
Contact Shape：Square
Contact Finish - Mating：Tin-Lead
Contact Finish Thickness - Mating：100.0µin (2.54µm)
Contact Finish - Post：Tin-Lead
Contact Material：Brass
Insulation Material：Polyamide (PA), Nylon
Features：Solder Retention
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：Varies by Wire Gauge
Voltage Rating：250V

Headers, Male Pins datasheet and documents for 1-794636-0

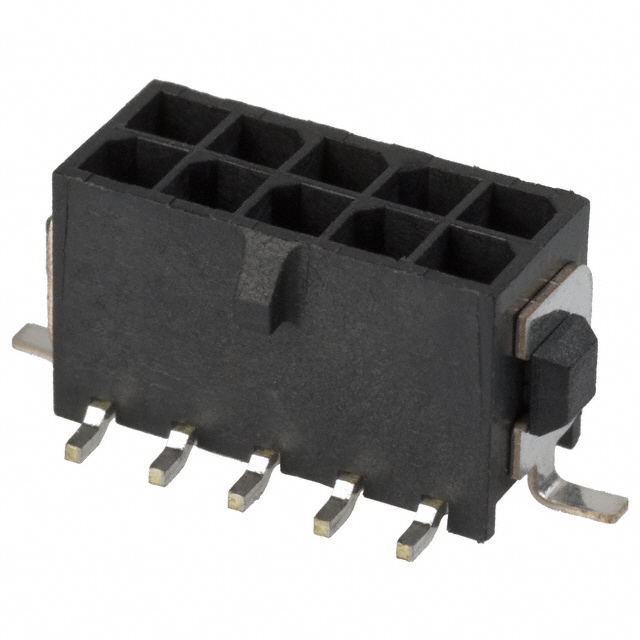

1-794636-0

Headers, Male Pins Overview

The TE Connectivity AMP Connectors part number 1-794636-0 is a rectangular connector header assembly belonging to the Micro MATE-N-LOK series. It features a 10-position configuration with a 3mm (0.118 inch) mating pitch and a 2-row arrangement. The component utilizes surface mount technology for PCB installation, employing solder termination. Constructed with brass contacts and polyamide insulation, it is designed for board-to-cable or wire applications.

Headers, Male Pins Feature Summary

Surface mount header design for automated PCB assembly
Micro MATE-N-LOK series locking mechanism
Dual row contact configuration

Headers, Male Pins Applications

Board-to-cable interconnects
General electronic equipment wiring
Industrial control systems

Headers, Male Pins Procurement Notes

Verify the specific suffix against official TE Connectivity documentation to confirm exact plating thickness and material specifications. Ensure compatibility with standard SMT reflow profiles and check for any recent packaging changes or PCN notices that may affect handling procedures.

Headers, Male Pins Selection Notes

Select this component when a low-profile, surface-mount solution is required for high-density connections. The 3mm pitch offers robust mechanical stability compared to finer pitches. Confirm that the housing color and terminal availability match the system requirements before finalizing the bill of materials.

Headers, Male Pins Part Context

This connector belongs to the Micro MATE-N-LOK family, known for reliable performance in general-purpose applications. The series provides various housing and contact options to support diverse current and voltage ratings within compact form factors suitable for modern electronics manufacturing.

Headers, Male Pins Replacement Considerations

Direct substitutes include other variants within the 1-794636-0 series such as different position counts or termination styles. Verify mechanical footprint compatibility and electrical ratings before substituting with generic equivalents.
