1-825433-0

Headers, Male Pins Overview

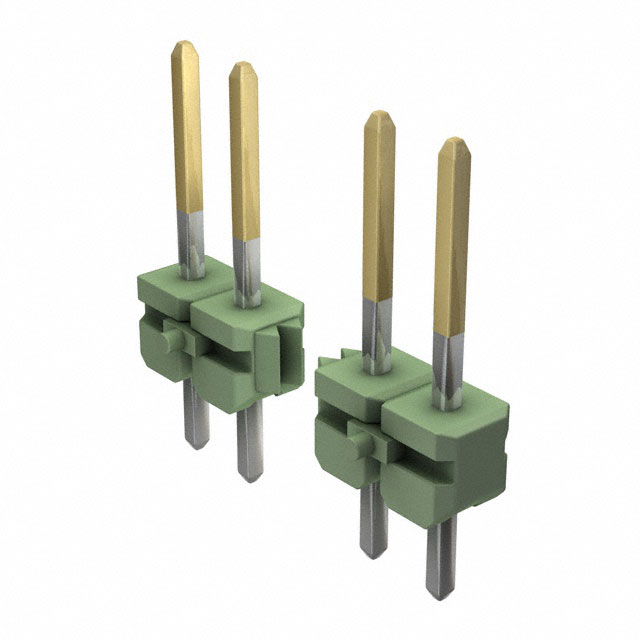

The TE Connectivity AMP Connectors part number 1-825433-0 is a rectangular connector header belonging to the AMPMODU MOD II series. It features a vertical orientation with a 2.54 mm (0.100 inch) pin spacing and accommodates 10 positions in a single row. The contacts are male pins designed for through-hole termination via soldering. Constructed with a thermoplastic housing, this component supports board-to-board or wire-to-board interconnections. It is rated for 750V and operates within a temperature range of -65°C to 105°C.

Headers, Male Pins Feature Summary

• Vertical header design for direct PCB mounting
• Gold-plated phosphor bronze contacts for reliable conductivity
• Thermoplastic insulator material ensuring structural integrity
• Push-pull locking mechanism for secure mating

Headers, Male Pins Applications

• Board-to-board interconnection systems
• Wire-to-board signal routing
• Industrial control panel assemblies
• Electronic instrumentation interfaces

Headers, Male Pins Procurement Notes

Verify the specific contact plating thickness and insulation material grade against the official manufacturer datasheet before integration. Confirm that the vertical header dimensions align with the target PCB footprint and clearance requirements. Ensure compatibility with mating receptacles from the same AMPMODU MOD II family to guarantee proper mechanical engagement and electrical performance.

Headers, Male Pins Selection Notes

Select this component when a vertical, single-row header with 2.54 mm pitch is required for robust signal transmission. The AMPMODU MOD II series offers standardized dimensions suitable for high-density applications. Consider the through-hole mounting style and push-pull locking feature for environments requiring secure connections without additional fasteners.

Headers, Male Pins Part Context

This connector is part of the extensive AMPMODU MOD II product line by TE Connectivity, widely utilized in industrial and commercial electronics. The series provides various position counts and orientations, allowing designers to scale interconnect solutions while maintaining consistent mechanical and electrical characteristics across different assembly configurations.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other 10-position, 2.54 mm pitch vertical headers from the AMPMODU MOD II series, such as 1-825433-2 or 1-825433-7, provided they match the required current rating and voltage specifications. Cross-reference mating parts to ensure interface compatibility.
