1419427

Overview

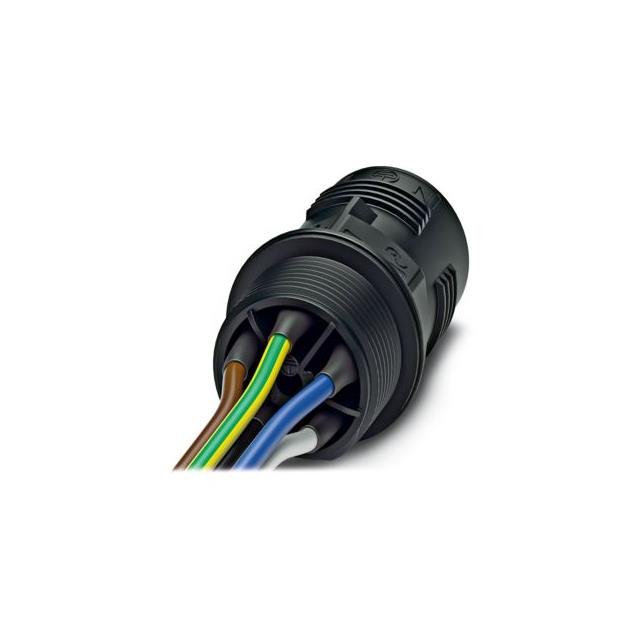

The Phoenix Contact 1419427 is a QPD W 5X1,5 M25 0,35 BK B-S panel feed-through connector designed for industrial applications. It features an M25 assembly thread and supports single wires with a cross-section of 0.5 mm² to 1.5 mm². The component operates at a rated voltage of 690 V and a current capacity of 17.5 A. Constructed from black PA material, it utilizes a welded-on connection method without a QUICKON nut. The integrated cable length is 0.35 meters, facilitating direct panel mounting.

Feature Summary

• Panel feed-through design with M25 assembly thread
• Welded-on connection for single wires up to 1.5 mm²
• Rated for 690 V and 17.5 A operation
• Black PA housing without QUICKON nut

Applications

• Industrial automation systems
• Process control installations
• Facility management infrastructure

Procurement Notes

Verify the specific suffix 'B-S' and cable length '0,35' against project requirements. Confirm that the welded-on termination method aligns with available installation tools. Ensure the M25 thread size matches the panel cutout specifications. Check for compatibility with existing QPD series components in the system architecture.

Selection Notes

Select this model when a fixed-length cable feed-through is required for panel mounting. The welded-on termination necessitates specific crimping or welding equipment rather than standard plug-in tools. Consider the 1.5 mm² wire limit when designing circuit layouts. Verify that the black PA material meets environmental resistance standards for the intended deployment location.

Part Context

This component belongs to the Phoenix Contact QPD series of circular metric connectors. The QPD line provides robust feed-through solutions for industrial environments. The 1419427 variant specifically integrates a pre-terminated cable, distinguishing it from standard blank panel entries. It complements other QPD accessories for complete cabling systems.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Direct replacement requires matching the M25 thread, 1.5 mm² wire capacity, and 0.35 m cable length. Verify electrical ratings and material composition before considering alternative manufacturers.
