1565749-3

Headers, Male Pins Overview

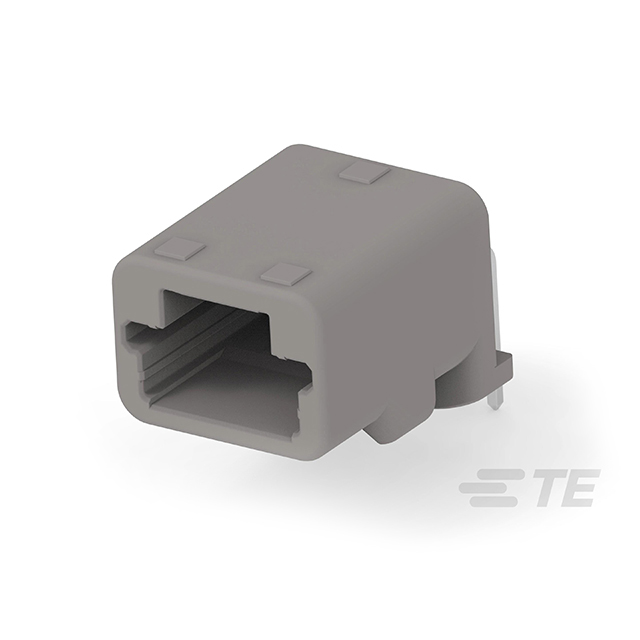

The TE Connectivity AMP Connectors part number 1565749-3 is a signal header connector designed for through-hole mounting. It features a right-angle configuration with four positions and a pitch of 0.087 inches (2.20 mm). The component utilizes male pin contacts suitable for automotive applications, belonging to the TH 025 series.

Headers, Male Pins Feature Summary

• Right-angle design facilitates compact board layout integration
• Through-hole termination ensures secure PCB attachment
• Male pin contact gender provides reliable signal transmission

Headers, Male Pins Applications

• Automotive electronic systems
• Signal interconnection in compact assemblies
• Board-to-board connectivity requiring right-angle orientation

Headers, Male Pins Procurement Notes

Verify current availability status as inventory levels fluctuate. Confirm RoHS compliance and lead times directly with authorized distributors. Ensure the specific right-angle orientation matches the mechanical constraints of the target assembly before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a low-profile, right-angle header is required for four-channel signal routing. The 2.20 mm pitch accommodates standard wire gauges. Verify that the through-hole mounting method aligns with the manufacturing process and that the male pin configuration meets the mating receptacle requirements.

Headers, Male Pins Part Context

This connector belongs to the AMP Signal Header product line manufactured by TE Connectivity. The TH 025 series designation indicates its specific form factor and contact spacing within the broader AMP catalog. It serves as a critical interface element in modern electronic assemblies requiring robust signal integrity.

Headers, Male Pins Replacement Considerations

No direct substitute part numbers are documented in the provided source material. Evaluate alternative headers from the same manufacturer only if they match the exact 4-position count, 2.20 mm pitch, and right-angle through-hole specifications.
