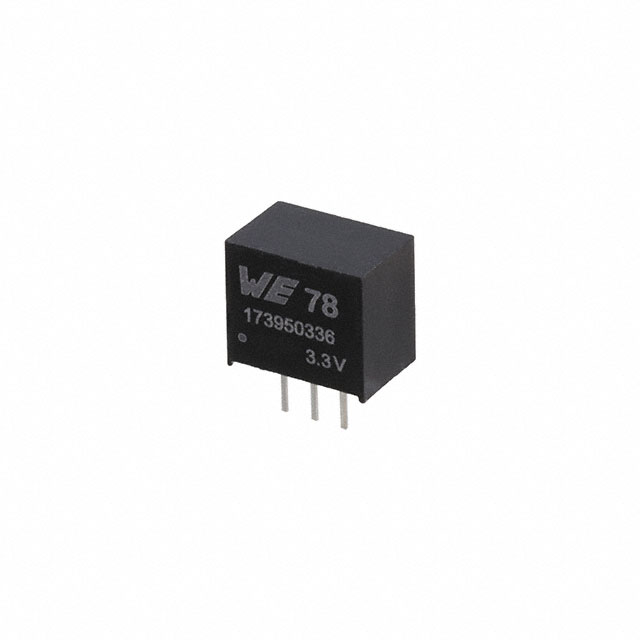

173950336

173950336 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Würth Elektronik. Its product description is DC DC CONVERTER 3.3V. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for 173950336

• Description：DC DC CONVERTER 3.3V
• Series：MagI³C, FDSM
• Mfr：Würth Elektronik
• Package：Tube
• Type：Non-Isolated PoL Module
• Number of Outputs：1
• Voltage - Input (Min)：4.75V
• Voltage - Input (Max)：36V
• Voltage - Output 1：3.3V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：500mA
• Power (Watts)：-
• Voltage - Isolation：-
• Applications：ITE (Commercial)
• Features：-
• Operating Temperature：-
• Efficiency：92%
• Mounting Type：Through Hole
• Package / Case：3-SIP Module
• Size / Dimension：0.46" L x 0.30" W x 0.40" H (11.6mm x 7.6mm x 10.2mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for 173950336
