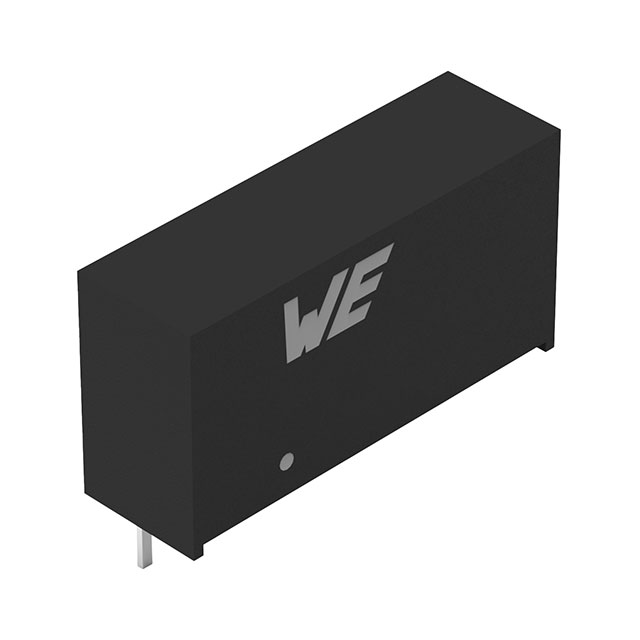

1779405241

1779405241 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Würth Elektronik. Its product description is WPME-FISM FIXED ISOLATED SIP/SMT. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for 1779405241

• Description：WPME-FISM FIXED ISOLATED SIP/SMT
• Series：MagI³C, FISM
• Mfr：Würth Elektronik
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：10.8V
• Voltage - Input (Max)：13.2V
• Voltage - Output 1：5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：400mA
• Power (Watts)：2 W
• Voltage - Isolation：3 kV
• Applications：ITE (Commercial)
• Features：-
• Operating Temperature：-40°C ~ 105°C
• Efficiency：85%
• Mounting Type：Through Hole
• Package / Case：7-SIP Module, 4 Leads
• Size / Dimension：0.77" L x 0.28" W x 0.40" H (19.7mm x 7.1mm x 10.2mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：62368-1
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for 1779405241
