20533-030E

Headers, Receptacles, Female Sockets Overview

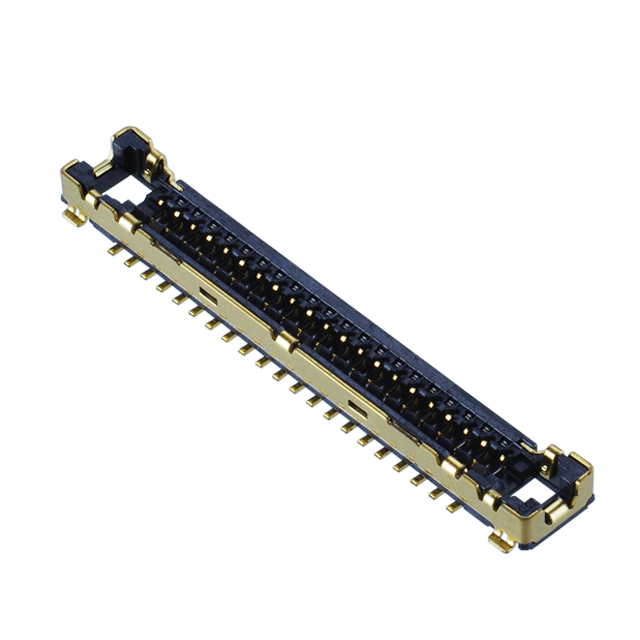

The I-PEX 20533-030E is a 30-position surface-mount receptacle connector from the CABLINE-VS series. It features a 0.25mm pitch and utilizes W-point contact technology for secure connections in harsh environments. The component supports high-speed transmission with ideal impedance matching between internal signals and ground paths, achieving performance suitable for LVDS applications exceeding 2.7Gbps. Designed for small form-factor LCDs, it offers over-molding for flexible board wiring and includes a double locking structure for reliable operation.

Headers, Receptacles, Female Sockets Feature Summary

• W-point contact structure ensures highly reliable connection under severe environmental conditions
• Over-molding design minimizes pattern prohibition areas and enhances board wiring flexibility
• Double locking mechanism provides standard built-in lock with optional pull bar for secure operation
• Metal shell coverage combined with multiple ground contact points delivers excellent EMI characteristics

Headers, Receptacles, Female Sockets Applications

• Small size liquid crystal displays
• High-speed signal transmission systems
• Compact electronic devices requiring robust board-to-board connectivity

Headers, Receptacles, Female Sockets Procurement Notes

Verify that the specific part number matches the required 30-position configuration and 0.25mm pitch specifications. Confirm compatibility with the intended PCB layout regarding the over-molded body dimensions and pin arrangement. Ensure the selected variant aligns with the necessary locking mechanism requirements for the assembly process.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when designing compact display interfaces that demand high signal integrity and mechanical stability. The 0.25mm pitch allows for dense routing, while the W-point contacts provide durability against vibration and thermal cycling. Consider the over-molded design benefits for minimizing trace restrictions on the printed circuit board during the layout phase.

Headers, Receptacles, Female Sockets Part Context

This connector belongs to the CABLINE-VS series, which is engineered for high-density interconnects in consumer electronics. The series emphasizes miniaturization without compromising electrical performance, making it suitable for modern portable devices where space is limited but data throughput requirements remain high.

Headers, Receptacles, Female Sockets Replacement Considerations

No public confirmed substitute part numbers are available for this specific model.

Headers, Receptacles, Female Sockets FAQ

What is the pitch of the I-PEX 20533-030E connector?

The connector features a 0.25mm pitch.

How does the connector handle electromagnetic interference?

It is covered by a metal shell and utilizes multiple points of ground contact to achieve excellent EMI characteristics.
