20682-030E-02

Headers, Receptacles, Female Sockets Overview

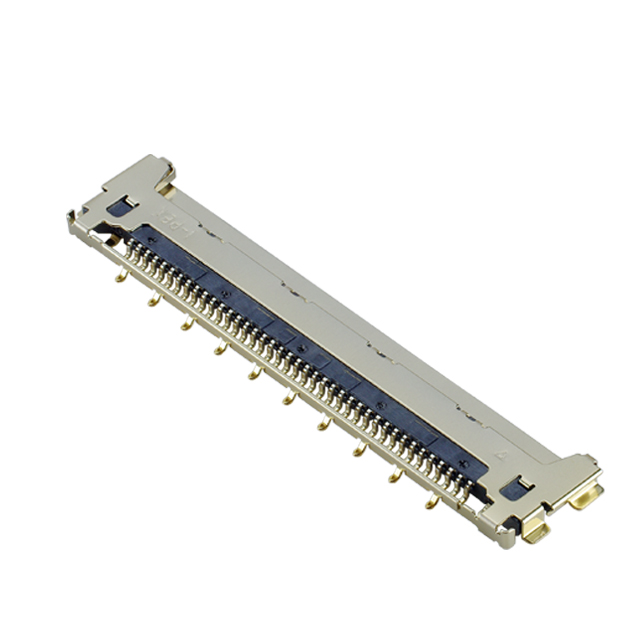

The I-PEX 20682-030E-02 is a CABLINE-CA II series receptacle connector designed for high-speed signal transmission. It features 30 positions with a 0.016-inch (0.40mm) pitch, utilizing surface mount right-angle termination. The contacts are gold-plated to ensure reliable conductivity and corrosion resistance. This component operates within a temperature range of -40°C to 85°C and meets UL94 V-0 flammability standards. It incorporates a latch holder mechanism for secure mating and employs ZenShield® technology to minimize electromagnetic interference and crosstalk in compact electronic assemblies.

Headers, Receptacles, Female Sockets Feature Summary

• Utilizes ZenShield® EMI shielding technology to suppress electromagnetic noise and reduce crosstalk during high-speed data transmission.
• Features a right-angle surface mount design with a 0.016-inch pitch, enabling space-efficient integration into dense circuit boards.
• Incorporates a mechanical latch holder system to ensure stable connection integrity against vibration and movement.
• Constructed with gold-plated contacts and UL94 V-0 rated insulator materials for enhanced durability and signal reliability.

Headers, Receptacles, Female Sockets Applications

• Internal connections between laptop motherboards and display panels
• High-resolution monitor interconnects requiring high bandwidth
• Portable electronic devices with strict spatial constraints
• Medical imaging equipment internal signal routing

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific suffix codes on official datasheets to confirm exact packaging quantities and reel specifications. Ensure compatibility with mating header components from the same CABLINE-CA II family. Cross-reference operating temperature ratings and material flammability classifications against project requirements before finalizing procurement orders.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a 30-position, 0.40mm pitch right-angle receptacle is required for high-speed applications. Consider the surface mount orientation and locking mechanism for assembly stability. Evaluate the need for ZenShield® shielding if the application environment presents significant electromagnetic interference challenges or requires strict signal integrity maintenance.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the CABLINE-CA II series, which utilizes micro-coaxial cable technology for high-frequency performance. The series supports advanced transmission standards such as USB4, Thunderbolt 3, and PCIe Gen 3/4. It is engineered for applications demanding minimal Z-height and flexible wiring solutions within confined spaces, distinguishing it from standard board-to-board connectors.

Headers, Receptacles, Female Sockets Replacement Considerations

Consult official I-PEX documentation for verified substitute part numbers. Do not assume cross-compatibility with other manufacturers' micro-coaxial connectors due to precise dimensional tolerances and proprietary locking mechanisms.

Headers, Receptacles, Female Sockets FAQ

What is the contact pitch of the 20682-030E-02?

The contact pitch is 0.016 inches (0.40mm).

Does this connector include shielding capabilities?

Yes, it utilizes ZenShield® technology to provide EMI shielding and reduce crosstalk.
