207611-7

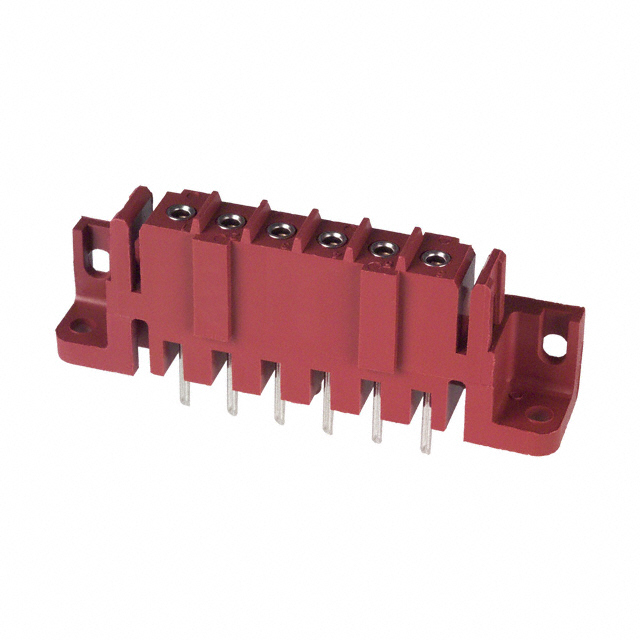

207611-7 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN HDR 6POS 0.197 GOLD PCB. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for 207611-7

• Description：CONN HDR 6POS 0.197 GOLD PCB
• Series：Metrimate
• Mfr：TE Connectivity AMP Connectors
• Package：Tray
• Connector Type：Header
• Contact Type：Female Socket
• Style：Board to Cable/Wire
• Number of Positions：6
• Number of Positions Loaded：All
• Pitch - Mating：0.197" (5.00mm)
• Number of Rows：1
• Row Spacing - Mating：-
• Mounting Type：Through Hole
• Termination：Solder
• Fastening Type：Latch Holder
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：30.0µin (0.76µm)
• Insulation Color：Red
• Insulation Height：0.768" (19.50mm)
• Contact Length - Post：0.186" (4.72mm)
• Operating Temperature：-55°C ~ 130°C
• Material Flammability Rating：UL94 V-0
• Contact Finish - Post：Tin
• Mated Stacking Heights：-
• Ingress Protection：-
• Features：Mounting Flange
• Current Rating (Amps)：7.5A
• Voltage Rating：600V

Headers, Receptacles, Female Sockets datasheet and documents for 207611-7
