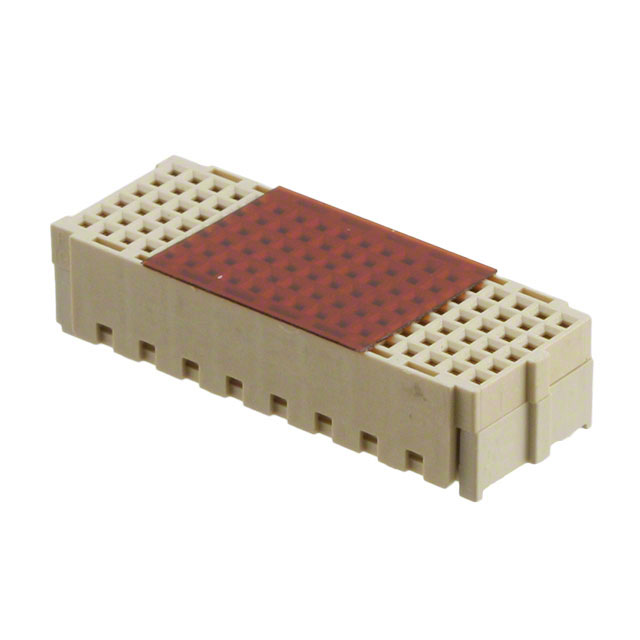

2102061-1

2102061-1 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists TE Connectivity Aerospace, Defense and Marine. Its product description is CONN RCPT 114POS 0.05 GOLD SMD. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for 2102061-1

• Description：CONN RCPT 114POS 0.05 GOLD SMD
• Series：Mezalok, VITA 61
• Mfr：TE Connectivity Aerospace, Defense and Marine
• Package：Tape & Reel (TR),Cut Tape (CT)
• Connector Type：Receptacle
• Contact Type：Female Socket
• Style：Board to Board
• Number of Positions：114
• Number of Positions Loaded：All
• Pitch - Mating：0.050" (1.27mm)
• Number of Rows：6
• Row Spacing - Mating：0.050" (1.27mm)
• Mounting Type：Surface Mount
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：50.0µin (1.27µm)
• Insulation Color：Natural
• Insulation Height：0.236" (6.00mm)
• Contact Length - Post：-
• Operating Temperature：-55°C ~ 125°C
• Material Flammability Rating：-
• Contact Finish - Post：Tin-Lead
• Mated Stacking Heights：10mm
• Ingress Protection：-
• Features：Pick and Place
• Current Rating (Amps)：-
• Voltage Rating：250VAC
