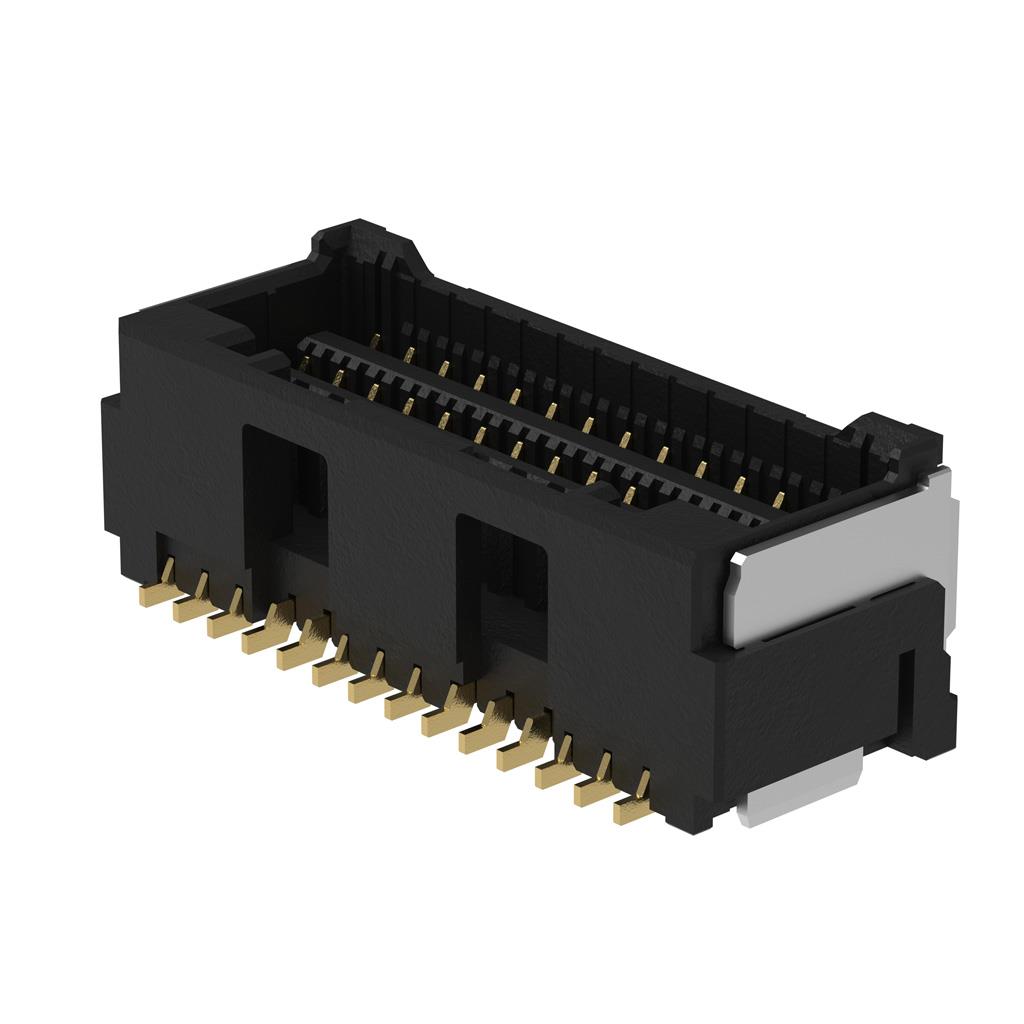

2132272811 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Molex. Its product description is CLIK-MATE1.5 DRVT SMT AU0.1 ETP. Review the specifications below when checking this part for your BOM.
Headers, Receptacles, Female Sockets specifications for 2132272811
- Description：CLIK-MATE1.5 DRVT SMT AU0.1 ETP
- Series：CLIK-Mate 213227
- Mfr：Molex
- Package：Tape & Reel (TR)
- Connector Type：Receptacle
- Contact Type：Forked
- Style：Board to Cable/Wire
- Number of Positions：28
- Number of Positions Loaded：All
- Pitch - Mating：0.059" (1.50mm)
- Number of Rows：2
- Row Spacing - Mating：-
- Mounting Type：Surface Mount
- Termination：Solder
- Fastening Type：Latch Holder
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：3.94µin (0.100µm)
- Insulation Color：Black
- Insulation Height：0.346" (8.80mm)
- Contact Length - Post：-
- Operating Temperature：-40°C ~ 105°C
- Material Flammability Rating：UL94 V-0
- Contact Finish - Post：Tin
- Mated Stacking Heights：-
- Ingress Protection：-
- Features：Pick and Place, Solder Retention
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：100VAC/DC
Headers, Receptacles, Female Sockets datasheet and documents for 2132272811
