2199119-1

Edgeboard Connectors Overview

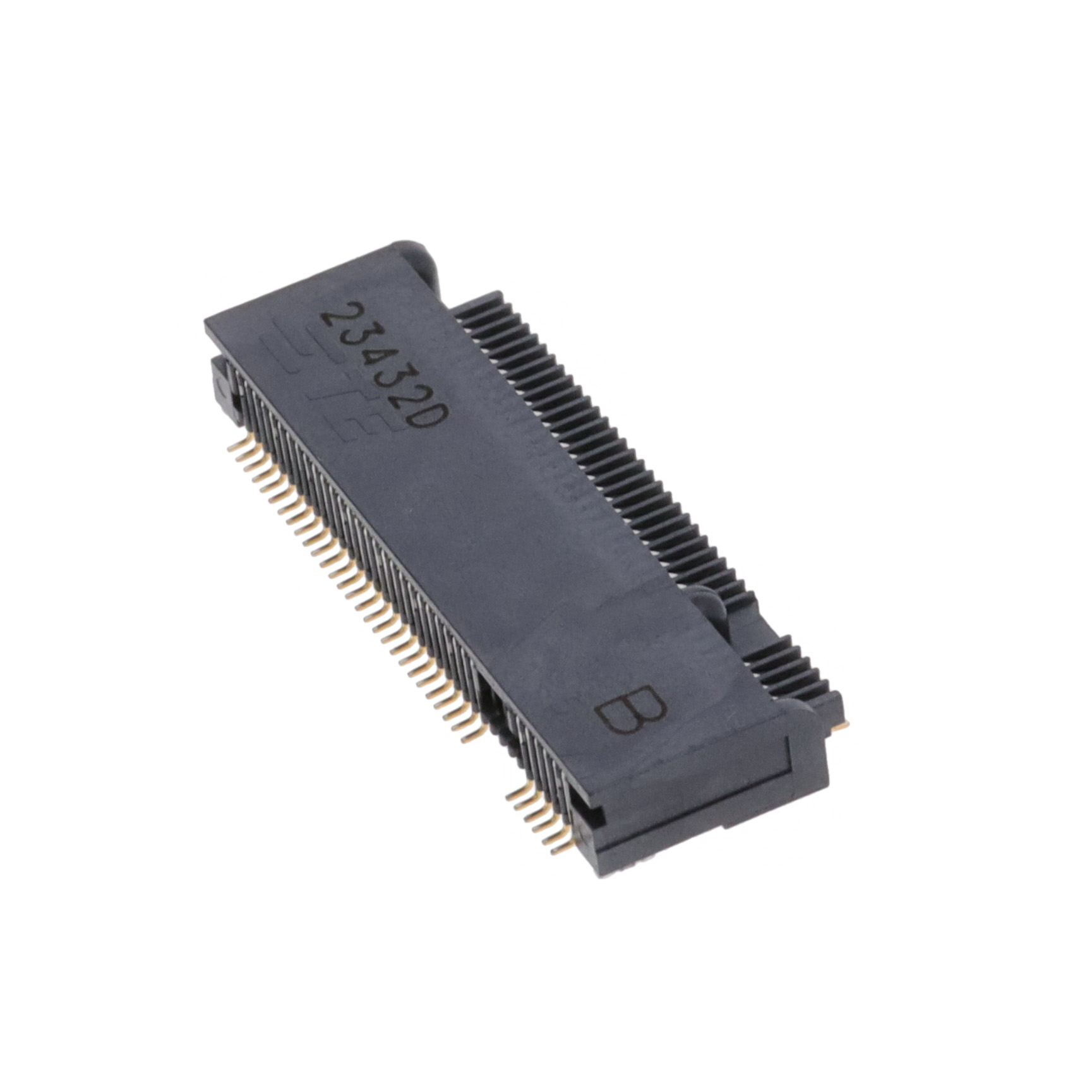

The TE Connectivity AMP Connectors part number 2199119-1 is a female M.2 (NGFF) mini card edge connector designed for surface mount, right-angle PCB installation. It features 67 positions with a 0.50mm pitch across two rows. The contacts are made of copper alloy with gold flash plating to ensure reliable signal transmission. This component supports Key B configuration and is rated for power applications within an operating temperature range of -40°C to 80°C.

Edgeboard Connectors Feature Summary

• Supports Key B configuration for specific module compatibility
• Designed for single-sided module mounting applications
• Utilizes gold flash contact finish for corrosion resistance
• Engineered for high-reliability drone and industrial solutions

Edgeboard Connectors Applications

• M.2 NGFF mini card interconnects
• Drone solution modules
• High-end application circuit boards
• Power circuit connections for single-sided modules

Edgeboard Connectors Procurement Notes

Verify the specific keying code (Key B) and contact height specifications against the target module requirements before procurement. Confirm that the gold flash plating thickness meets the endurance needs of the intended power or data interface. Ensure the surface mount right-angle footprint aligns with the PCB layout constraints. Check for any recent product change notices regarding material composition or assembly processes.

Edgeboard Connectors Selection Notes

Select this connector when a Key B M.2 interface is required for single-sided modules. Consider the 3.2mm height constraint for vertical clearance in the design. Evaluate the thermal performance within the specified -40°C to 80°C range. Compare against other variants in the 2199119 series if different key codes or heights are needed for alternative module types.

Edgeboard Connectors Part Context

This component belongs to the M.2 NGFF connector family from TE Connectivity. It shares the base product number 2199119 with other variants that differ in keying codes, heights, and plating thicknesses. The series is widely used in compact electronic devices requiring high-density interconnects for storage and communication modules.

Edgeboard Connectors Replacement Considerations

Compatible substitutes include other Key B M.2 connectors with identical 67-position layouts and 3.2mm heights. Verify mechanical dimensions and electrical ratings match exactly. Cross-reference with part numbers like 2199119-4 for similar specifications.
