2199119-8

Edgeboard Connectors Overview

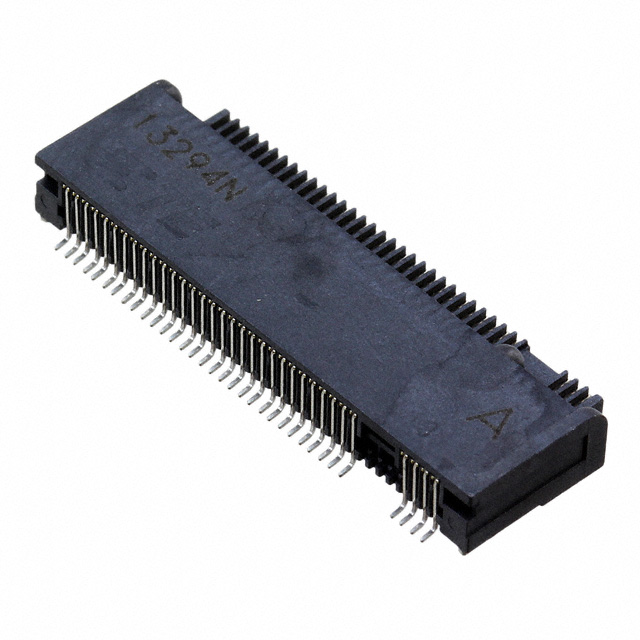

The TE Connectivity AMP Connectors part number 2199119-8 is a high-density edgeboard connector designed for M.2 (NGFF) Mini Card applications. It features a dual-row configuration with 67 positions and a precise 0.50mm pitch. The connector utilizes gold-plated contacts to ensure reliable signal transmission in demanding environments. Designed for surface mount installation, it supports single-sided modules with a height of 2.25mm. The housing is constructed from thermoplastic material, providing structural integrity and compliance with RoHS standards.

Edgeboard Connectors Feature Summary

• Dual-row design optimized for M.2 NGFF standard compatibility
• Gold-plated contacts for enhanced conductivity and corrosion resistance
• Surface mount termination method for automated PCB assembly
• Zero insertion force mechanism ensuring secure module engagement

Edgeboard Connectors Applications

• M.2 SSD storage modules
• Wi-Fi and Bluetooth wireless cards
• Cellular connectivity modules
• IoT edge computing devices

Edgeboard Connectors Procurement Notes

Verify the specific suffix against official TE Connectivity documentation to confirm pinout and mechanical tolerances. Ensure the procurement channel provides traceable component history. Confirm that the received parts match the JEDEC M.2 specification requirements for your target application. Cross-reference the datasheet for any recent packing spec changes or reliability document updates prior to finalizing orders.

Edgeboard Connectors Selection Notes

Select this connector when space constraints require a high-pin-count interface within a minimal footprint. The 0.50mm pitch allows for dense routing on compact circuit boards. Consider the surface mount orientation if board real estate is limited. Validate thermal performance requirements against the operating temperature range specified in the product datasheet before integration into the final system design.

Edgeboard Connectors Part Context

This component belongs to the M.2 (NGFF) series by TE Connectivity, specifically engineered for next-generation form factor cards. It serves as a critical interconnect solution for modern portable electronics and industrial IoT devices requiring high-speed data transfer capabilities. The series is widely adopted in consumer electronics and telecommunications infrastructure.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers include 2199119-4 and 2199119-7. Verify mechanical compatibility and electrical specifications before substitution.
