2199125-3

$0.95

Description：CONN M.2 FMALE 67POS 0.020 GOLD
Series：-
Mfr：TE Connectivity AMP Connectors
Package：Tape & Reel (TR)

SKU:ec38baa6ebec Category: Edgeboard Connectors Brand: TE Connectivity AMP Connectors

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

2199125-3 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN M.2 FMALE 67POS 0.020 GOLD. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 2199125-3

Description：CONN M.2 FMALE 67POS 0.020 GOLD
Series：-
Mfr：TE Connectivity AMP Connectors
Package：Tape & Reel (TR)
Card Type：M.2 (NGFF) Mini Card
Gender：Female
Number of Positions/Bay/Row：-
Number of Positions：67
Card Thickness：-
Number of Rows：2
Pitch：0.020" (0.50mm)
Read Out：Dual
Features：Board Guide
Mounting Type：Surface Mount, Right Angle
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：15.0µin (0.38µm)
Contact Type：-
Color：Black
Flange Feature：-
Operating Temperature：-

Edgeboard Connectors datasheet and documents for 2199125-3

2199125-3

Edgeboard Connectors Overview

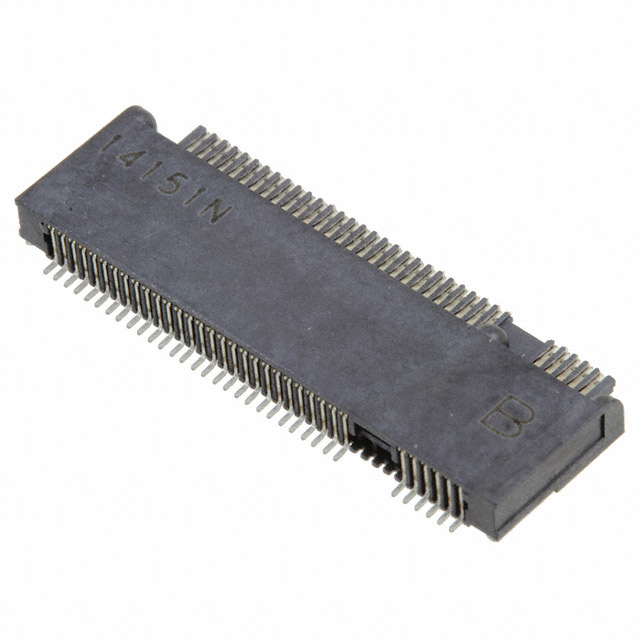

The TE Connectivity AMP Connectors part number 2199125-3 is a 67-position female card edge connector designed for M.2 (NGFF) mini cards. It features a 0.020 inch (0.50mm) pitch and utilizes gold-plated contacts with a thickness of 15.0µin (0.38µm). The connector is constructed from copper alloy contacts and black thermoplastic insulation. It supports surface mount, right-angle installation and solder termination. This component is classified as obsolete.

Edgeboard Connectors Feature Summary

Designed specifically for M.2 (NGFF) mini card applications
Female contact configuration with gold plating for reliable signal transmission
Right-angle surface mount mounting style for compact board integration

Edgeboard Connectors Applications

M.2 module interconnection to host systems
NGFF mini card slot interfaces
High-density data storage device connections

Edgeboard Connectors Procurement Notes

This component is officially listed as obsolete by the manufacturer. Availability is limited to existing stock or surplus channels. Verify end-of-life status and lifecycle notices before design inclusion. Sourcing may require checking secondary distributors for remaining inventory. Ensure compatibility with replacement alternatives if production continuity is required.

Edgeboard Connectors Selection Notes

Select this connector only for legacy designs requiring M.2 female interface with 0.50mm pitch. Confirm right-angle surface mount requirements match PCB layout constraints. Gold flash thickness meets standard reliability needs for repeated mating cycles. Check current availability due to obsolete status. Consider pin count and keying specifications for system compatibility.

Edgeboard Connectors Part Context

Part of the TE Connectivity AMP Connectors M.2 series. Belongs to the standard card edge connector category. Related variants include 2199125-5 and 1-2199125-3. Shares family characteristics with other M.2 interface solutions but differs in specific pin configurations and mounting styles.
