22027103

Headers, Receptacles, Female Sockets Overview

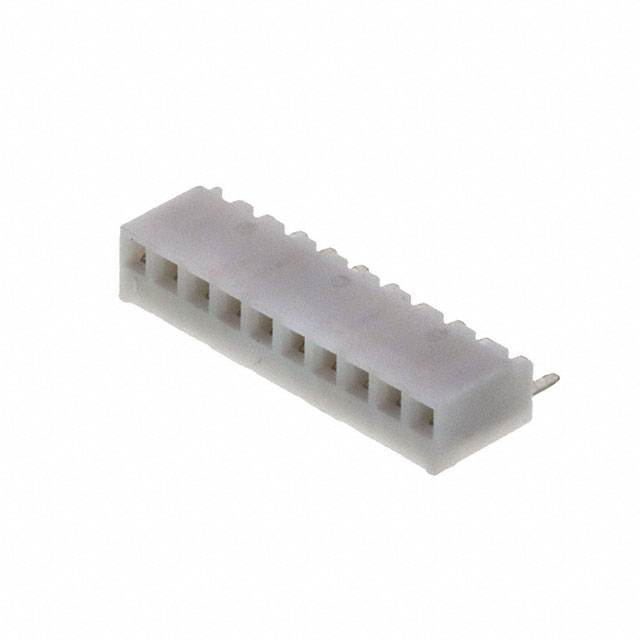

The Molex 22027103 is a KK 254 PC Board Connector receptacle designed for top entry and end-to-end stackable applications. It features a 2.54mm pitch with 10 circuits and utilizes through-hole termination. The connector employs brass contacts with 2.5µm tin plating on the mating interface and tin plating on the termination side. Rated for a maximum current of 4.0A per contact and a maximum voltage of 500V, it operates within a standard temperature range. The housing is made of natural nylon resin with a 94V-0 flammability rating, offering partial shrouding and polarization to ensure correct PCB orientation.

Headers, Receptacles, Female Sockets Feature Summary

• End-to-end stackable design facilitates vertical assembly configurations
• Partial shrouding provides polarized locking to prevent misalignment
• Through-hole termination ensures secure PCB mounting

Headers, Receptacles, Female Sockets Applications

• General purpose electronic circuit interconnections
• Industrial control system board-to-board connections
• Consumer electronics internal wiring harnesses

Headers, Receptacles, Female Sockets Procurement Notes

Verify that the specific order matches the 10-position configuration and right-angle orientation. Confirm that the tin-plated contacts are suitable for the intended signal integrity requirements, as gold plating options exist in this series. Ensure the receiving facility has appropriate handling procedures for through-hole components to prevent lead damage during storage.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a low-profile, stackable header is required for high-density PCB layouts. The 2.54mm pitch offers a balance between spacing and density. Consider the 4.0A current rating against the total load requirements of the application. Verify that the operating temperature range aligns with the environmental conditions of the final assembly.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Molex KK 254 series, a widely used line of PCB headers known for reliability and versatility. The series supports various contact counts and orientations, making it a standard solution for general interconnect needs across automotive, industrial, and consumer sectors. The 22027103 specifically represents the 10-position variant.

Headers, Receptacles, Female Sockets Replacement Considerations

Compatible substitutes include other manufacturers' 2.54mm pitch through-hole headers with identical pin counts and stacking capabilities. Ensure replacement parts match the 4.0A current rating and 500V voltage specification. Verify mechanical compatibility regarding shrouding style and polarization features.
